Description
Retractable 3 Port Quill
Application:- Injection Quills are designed to ensure a more uniform and rapid dispersal of injection chemicals into the center of the process pipe tank.
- Deaerator and boiler feed water tank applications are suited well for this product.
- This product is primarily made of type 316 stainless steel.
- Three shut off ball valves are included with this product.
- Alloy 20 and Hastelloy materials are also available.
- Special quill lengths may also be ordered upon request. Please email us at quotes@chemworld.com.
- Hex body shape allows for a wrench to be used during installation.
- Made in the USA.
- Each quill is welded to two rings to prevent quills from unscrewing.

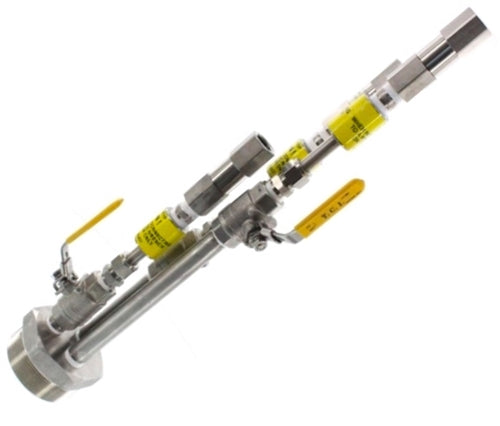

- Optional: Check valves (-CV) is optional with this unit. If ordered they come installed. (As seen in the photo above).
| Part Number | Process Connection | Chemical Connection |
Quill Size |
Quill Length | Pressure (max) | Temperature (max) |
|---|---|---|---|---|---|---|
| QR3-250-316SS-Q12S | 2 1/2" MNPT | 1/2" FNPT | 1/2" | 12" | 150 psi | 250F (121C) |
| QR3-250-316SS-Q12S-CV | 2 1/2" MNPT | 1/2" FNPT | 1/2" | 12" | 150 psi |
250F (121C)
|
| QR3-300-316SS-Q12S | 3" MNPT | 1/2" FNPT | 1/2" | 12" | 150 psi | 250F (121C) |
| QR3-300-316SS-Q12S-CV | 3" MNPT | 1/2" FNPT | 1/2" | 12" | 150 psi | 250F (121C) |
ChemWorld also stocks PVC, Kynar, and C-20 injection quills. For chemical applications that never shut down, consider using a stainless steel corporation stop valves.

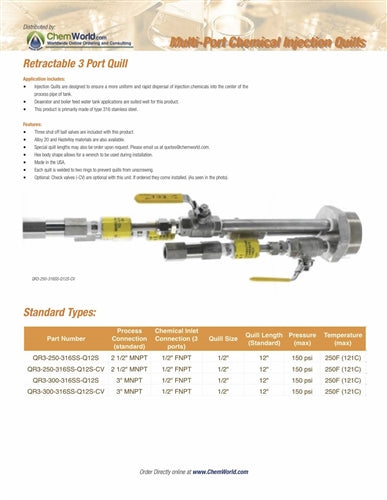

Review the Product Bulletin for more information.
What is your lead time on this chemical injection quill? This product typically ships within three to five business days, if you do need it rushed, please call us at 800-658-7716 and see if we can expedite it for you.
