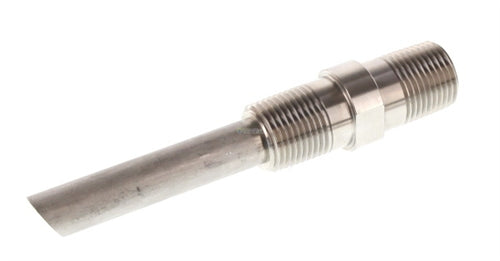

C-20 Chemical Injection Quill

What are the materials of construction?
C-20 Chemical Injection Quills come with a C-20 material body, optional ceramic check and hast alloy C-20 spring.

Can I order this injection quill?
Yes, we sell to everyone. This quill only comes in 1/2" NPT size. You may always install NPT bushing within your pipe to fit this unit into larger fittings. This product has two options:

1. Optional check valve.
2. The standard quill length is 2 3/4", you may choose a longer length. Simply add it to the cart and put the actual quill length into the notes section when completing the order.

What pressure can this C-20 injection quill be used to?
3000 psi maximum pressure.

What is the maximum temperature this C-20 Quill can be used at?
750F or 400C.

What is the crack open pressure for the check valve option?
Check valve crack open pressure 10 psi.

What other materials do the Injection Quills come in?

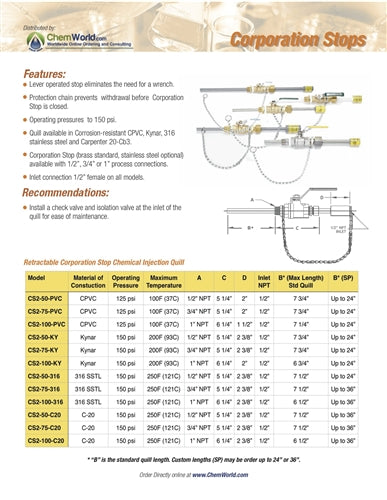

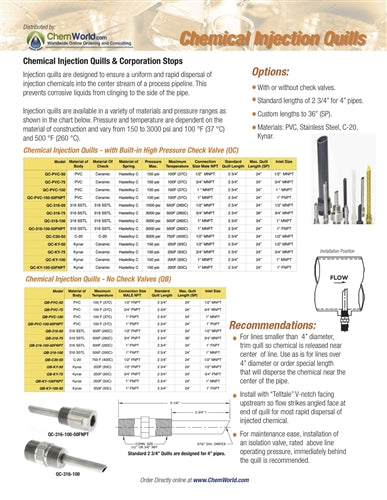

PVC ,Kynar , and 316 stainless steel materials. Review the Product Bulletin for more information. For chemical applications that never shut down, consider using a retractable injection quill.What is your lead time on this chemical injection valve? This product typically ships within two days, if you do need it rushed, please call us at 800-658-7716 and see if we can expedite it for you.

Is c-20 the same as alloy 20? Yes is is the same material.

Does your C-20 chemical injection quill come with a CRN? Canadian Registration Number No, our quills do not have a CRN.
