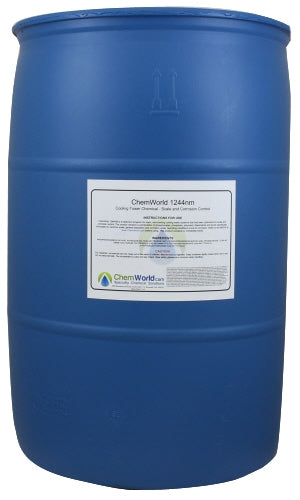

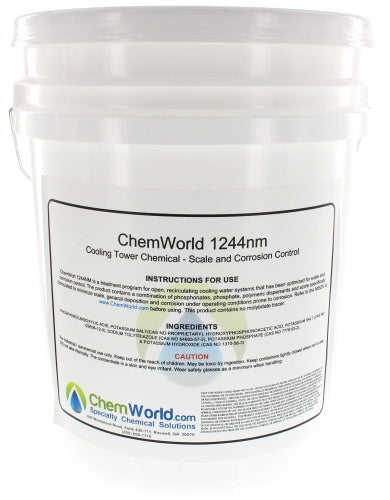

Corrosive Tower Water ConditionsChemWorld 1244 is designed for water systems with corrosive water conditions.
ChemWorld 1244 is a treatment program for open, recirculating cooling water systems that was optimized for scale and corrosion control. The product contains a combination of phosphonates, phosphate, polymeric dispersants and azole specifically formulated to minimize scale, general deposition, and corrosion under operating conditions prone to corrosion. This product does not contain a molybdate tracer.
What is the feed rate of this chemical?
- This product is controlled and fed based on organophosphonate in the cooling water with a organophosphonate test kit.
- Maintain organophosphonate residual between 10 to 15 ppm in the cooling tower system.
- Feedrates is 100 to 300 ppm.
- Usage is roughly 1 to 3 gallons per 10,000 of fresh makeup water.
This chemical is a mixture of the below chemicals:
- Potassium Hydroxide (Cas No.1310-58-3)
- Potassium Phosphate (Cas no. 7778-53-2)
- Sodium Tolytriazole (Cas No. 64665-57-2)
- Phosphonocarboxylic Acid, Potassium Salt (Cas No. PROPRIETARY)
- Hydroxyphosphonoacetic Acid, Potassium Salt (Cas No. 129836-12-0)
- One 5 gallon pail of ChemWorld Q-ALK-PC - This product is required to clean the debris and greases prior to startup.
- One 5 gallon pail of ChemWorld 1334 - ChemWorld 1334 is scale and corrosion control cooling tower chemical. After startup, you can perform testing of your water hardness and alkalinity and we can tune in your exact chemical for long-term protection.
- One 5 gallon pail of ChemWorld 56 - ChemWorld 56 is a 12.5% sodium hypochlorite product that is required to kill bacteria. This is the cheapest easiest product to get your system up and going, you can convert to tablets or a stabilized bromide product after startup.
- One LakeWood 140 Cooling Tower Controller - You will need to set the controller to feed and bleed the cooling tower water to maximize cycles and to minimize chemical usage rates. An optional dual biocide water treatment can be implemented after startup. This is model 1239597 (which is board mounted unit that has the flow assembly on the left).
- One 1167435 Cooling Tower Blowdown Valve (1" NPT) - This will be required when the cooling tower calls to release cooling tower water.
- Two Stenner 45MHP10 Adjustable Head Pumps - One pump is required for the corrosion/ scale prevention chemical and for the biocide. Each pump is rated to 100 psi, which should be enough to feed the chemical into the system. The ideal spot to feed the chemical is into the return header of the cooling tower. These Stenner Pump kits come with chemical injection valves that will allow for quick injection of each chemical into the sidestream water loop that is used to monitor the cooling tower conductivity.
- One complete CWTK-200 Cooling Water Treatment Test Kit. This kit contains every test you will need to set up and fine tune your water treatment program.
- One Chemical Metal Test Station Cabinet - You need to keep your test kits and lo sheets in one clean location. This test kit is ideal for cooling towers. Items in the photo of test kit not included.
