Description
Stenner 45MHP10
This is the most popular Stenner Pump model! The product is stocked in Salt Lake City, Utah; Detroit, Michigan; & Atlanta, Georgia.
1 to 2-day shipping to 95% of the USA. Chemworld also sells just a replacement Stenner 45MHP10 pump with no accessories as in the photo.
What is the rating of the Stenner Model 45MHP10?
The break down of this Stenner Model 45MHP10 is 45MJH2A1S.
- Adjustable head rated at 100 psi.
- Rated at 0.5 to 10.0 GDP.
- Voltage/Hertz is 110/120 Volt.
- 1/4 inch suction and discharge tubing size.

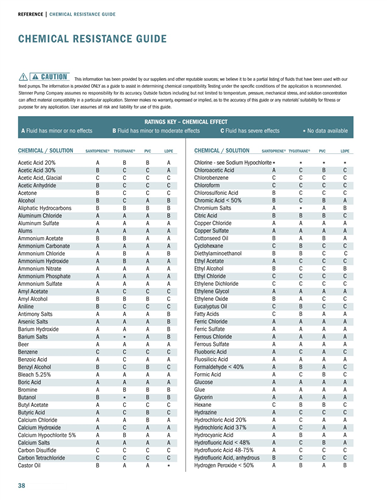

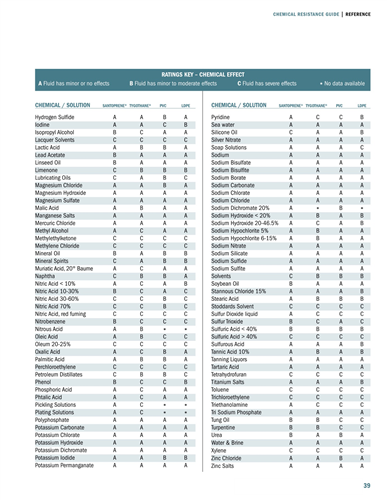

- Santoprene tube material. Check out the material compatibility chart, if you are concerned about chemical compatibility.

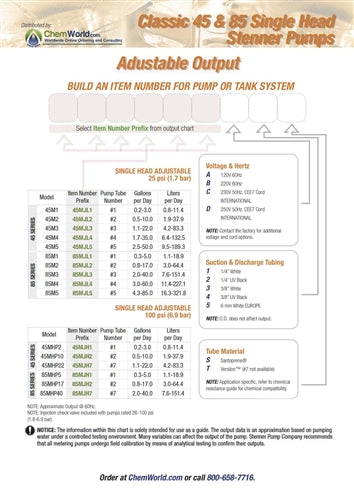

There are other options for Stenner 45MHP10. If you need a different voltage, tube size, or material discharge size please refer to our main Stenner 45M page.

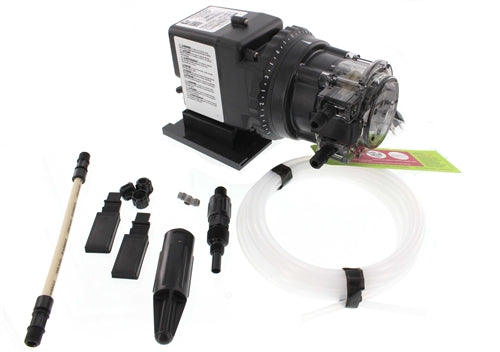

Pump Kit includes (everything in the picture):
- THREE 1/4" chemical injection check valve.
- ONE Chemical Injection Quill 100 psi (6.9 bar).
- ONE 1/4" weighted suction line strainer.
- ONE 1/4" x 20 foot white (clear) roll suction/discharge tubing.
- ONE additional Stenner Number 2 pump tube.
- TWO additional latches.
- ONE mounting bracket.
- Optional Stenner Pump rain roof or rain cover & rain roof.
ChemWorld also sells just the replacement Stenner Pump 45MHP10 without all the items in the kit.
Note: This is a 1/4" suction and discharge pump. If you require a 1/4" black suction OR a different discharge tube, please order Stenner Pump 85MHP17.
Need other options for your Stenner pump. Check out our main Stenner Pump product page.
Need to convert to a 3/8" discharge tube?
Convert your Stenner pump to a 3/8" discharge tube size by ordering the Stenner 1/4" to 3/8" tube adapters. You will also require a 3/8" chemical injection quill if you are injecting the product into a pipe.Can you tell me if we can increase our pumping capacity on a 45MHP10 to a 45MHP-22? Do we need to buy a new pump head to accommodate the larger Santoprene tube? There will be no issues from switching from a 45MHP10 to 45MHP22 and it will remain NSF61 compliant. Per Stenner's Tech support you simply need to change out the #2 pump tube for a #7 pump tube.
Do you have the 45MHP10 Pump in 220V Yes we do carry the 45MHP10 pump as the 220V version. You can chose the voltage from the drop down on our 45M Pump Series page.
