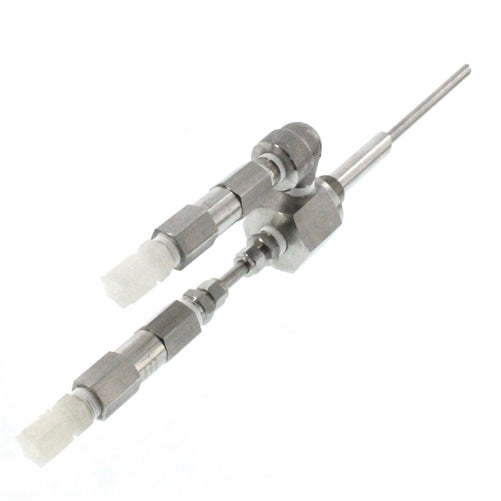

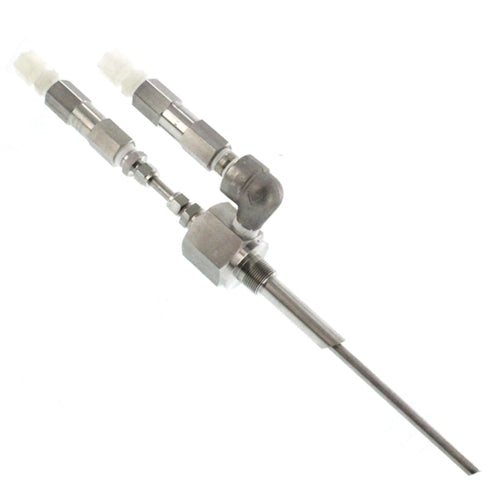

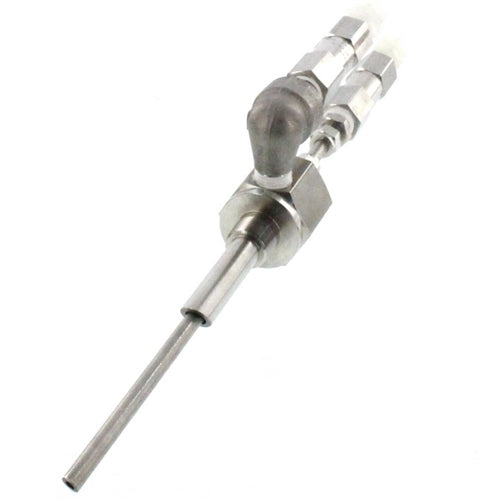

Dual Port Injection Quill

These dual-port chemical injection quills are specially designed to ensure a more uniform and rapid dispersal of TWO chemical injects into one port. This allows the chemicals to be injected near the center of the process stream pipe and minimizes any chance of chemicals clinging/damaging of the pipe inner surface.

The dual injection quills are primarily made of Type 316 SSTL they are designed to allow two chemicals to be injected into one port simultaneously.

Standard P/N design options:

• Process Connection Size: 1/2", 3/4", or 1" mnpt (-050, -075, & -100, respectively).
• High-Pressure Check Valve Kits: (-CVK)
• Shutoff Ball Valves: (-BV)

Quick Ordering Breakdown:

• QD316-050: 1/2" mnpt Process Connection
• QD316-075: 3/4" mnpt Process Connection
• QD316-100: 1" mnpt Process Connection
• QD316-050CVK: 1/2" mnpt Process Connection includes 2 Check Valve Kits
• QD316-075CVK: 3/4" mnpt Process Connection includes 2 Check Valve Kits
• QD316-100CVK: 1" mnpt Process Connection includes 2 Check Valve Kits
• QD316-050BV-CVK: 1/2" mnpt Process Connection w/ 2 Ball Valves & 2 Check Valve Kits

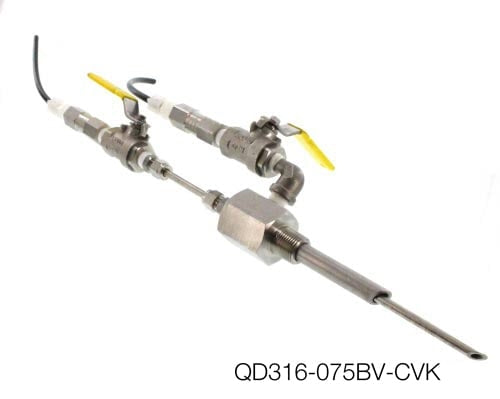

• QD316-075BV-CVK: 3/4" mnpt Process Connection w/ 2 Ball Valves & 2 Check Valve Kits
• QD316-100BV-CVK: 1" mnpt Process Connection w/ 2 Ball Valves & 2 Check Valve Kits

Features:

• Check valve kits are an option on the pump side connection for easy installation and come assembled ready for use.
• The insertion length of the inner tube is adjustable, based on where the compression fitting is secured.
• Hex shaped body allows a wrench to bye used during installation
• This product includes two 1/4" or 1/2" pump connectors for quick connection of you 1/4" or 1/2" chemical tubes.

Special Options:
Specific quill lengths and materials of Alloy 20 and Hastelloy are available upon special request. Please email your requirements to quotes@chemworld.com.

Product Breakdown:

Part Number	Process Connection	Pump Side	Inner Quill Size (Tubing)	Outer Quill Size (Pipe)	Inner Quill Length	Outer Quill Length	Press. (Max)	Temp (Max)
QD316-050	1/2" MNPT	1/4" FNPT	1/4"	1/4"	2 3/4"	Up to 7"	0 psi	500F
QD316-050-CVK	1/2" MNPT	1/4" FNPT	1/4"	1/4"	2 3/4"	Up to 7"	1000 psi	375F*
QD316-050BV-CVK	1/2" MNPT	1/4" FNPT	1/4"	1/4"	2 3/4"	Up to 7"	1000 psi	375F*
QD316-75	3/4" MNPT	1/2" FNPT	3/8"	3/8"	2 3/4"	Up to 7"	0 psi	500F
QD316-075-CVK	3/4" MNPT	1/2" FNPT	3/8"	3/8"	2 3/4"	Up to 7"	1000 psi	375F*
QD316-75BV-CVK	3/4" MNPT	1/2" FNPT	3/8"	3/8"	2 3/4"	Up to 7"	1000 psi	375F*
QD316-100	1" MNPT	1/2" FNPT	3/8"	3/8"	2 3/4"	Up to 7"	0 psi	500F
QD316-100-CVK	1" MNPT	1/2" FNPT	3/8"	3/8"	2 3/4"	Up to 7"	1000 psi	375F*
QD316-100BV-CVK	1" MNPT	1/2" FNPT	3/8"	3/8"	2 3/4"	Up to 7"	1000 psi	375F*

*Maximum temperature rating is based on units provided with check valves.

Note: Crack pressure on high pressure check valves is 20 psi minimum.

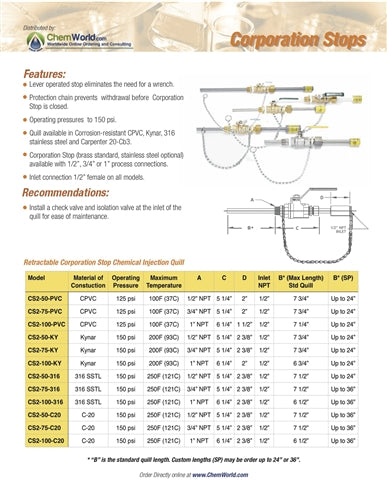

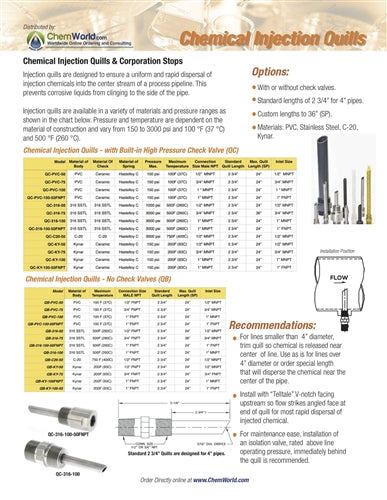

ChemWorld also stocks PVC, Kynar, and C-20 injection quills. For chemical applications that never shut down, consider using a stainless steel corporation stop valves.

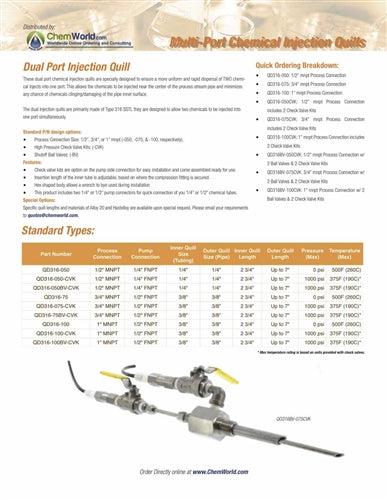

Review the Product Bulletin for more information.
What is your lead time on this chemical injection quill? This product typically ships within three days, if you do need it rushed, please call us at 800-658-7716 and see if we can expedite it for you.
