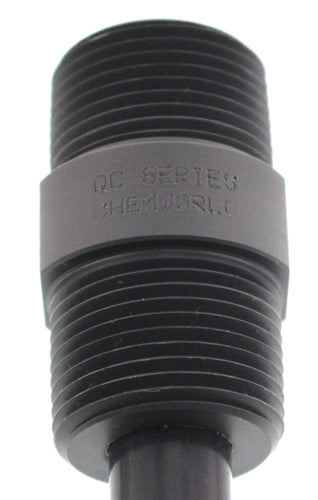

3/4" PVC Chemical Injection Quills

3/4" diameter PVC chemical injection quills.

• This product comes with an internal ceramic ball check valve.
• Choose custom lengths up to 24".
• Good up to 100F.
• Good up to 150 psi.
• Check valve crack open pressure 10 psi.
• Custom lengths to 24" with check valves are available.
• For 1/2" NPT fittings, consider using a 1/2" PVC injection quills.
• Standard 2 3/4" chemical injector quills are available for 4" pipes.

These Quills are made from PVC. The units only require Teflon tape and hand tightening.
Over tightening or tightening with a wrench, pipe wrench or similar tool can put too much pressure on the quills what might lead to damages and quill failure.

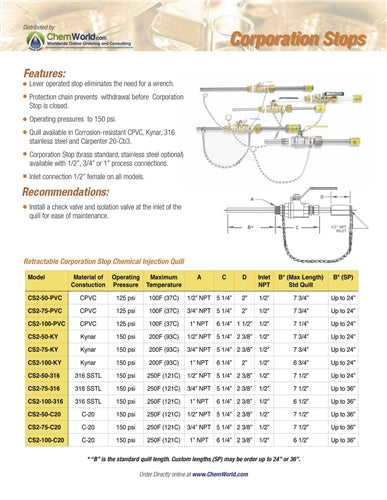

ChemWorld also stocks Kynar, Stainless Steel, and C-20 injection quills. For chemical applications that never shut down, consider using a PVC corporation stop valves.

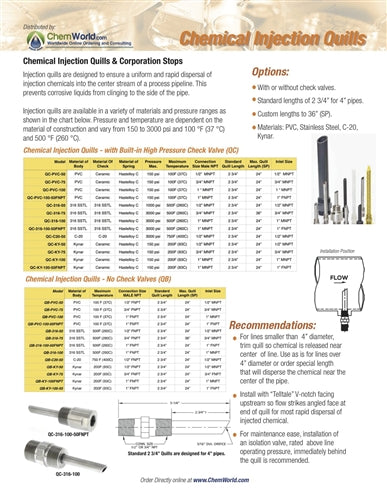

Review the Product Bulletin for more information.
