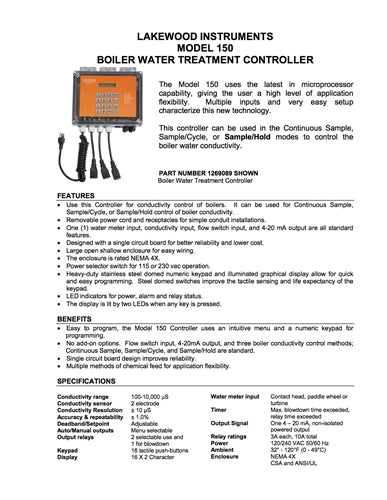

Boiler Conductivity Controller

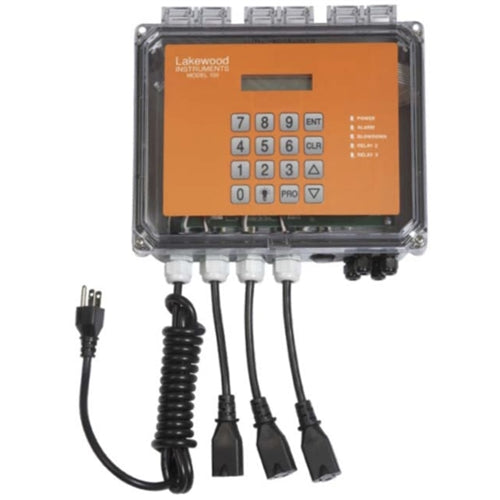

The Model 150 (1269089) uses the latest in microprocessor capability, giving the user a high level of application flexibility. Multiple inputs and very easy setup characterize this new technology. This controller can be used in the Continuous Sample, Sample/Cycle, or Sample/Hold modes to control the boiler water conductivity. Use this Controller for conductivity control of boilers. It can be used for Continuous Sample, Sample/Cycle, or Sample/Hold control of boiler conductivity.

Features:

• Removable power cord and receptacles for simple conduit installations.
• One (1) water meter input, conductivity input, flow switch input, and 4-20 mA output are all standard features.
• Designed with a single circuit board for better reliability and lower cost.
• Large open shallow enclosure for easy wiring.
• The enclosure is rated NEMA 4X.
• Power selector switch for 115 or 230 vac operation.
• Heavy-duty stainless steel domed numeric keypad and illuminated graphical display allow for quick and easy programming. Steel domed switches improve the tactile sensing and life expectancy of the keypad.
• LED indicators for power, alarm and relay status.
• The display is lit by two LEDs when any key is pressed.

Benefits:

Easy to program, the Model 150 Controller uses an intuitive menu and a numeric keypad for programming.

• No add-on options. Flow switch input, 4-20mA output, and three boiler conductivity control methods; Continuous Sample, Sample/Cycle, and Sample/Hold are standard.
• Single circuit board design improves reliability.
• Multiple methods of chemical feed for application flexibility.

Specifications:

• Conductivity Range: 100 to 10,000 uS
• Conductivity Sensor: 2 Sensor
• Resolution: +/- 10 uS
• Accuracy: +/- 1%

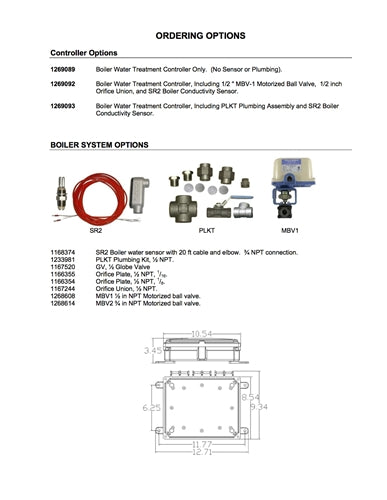

Items listed in the options include orifice plates, SR2 Probe, and Motorized Ball Valve (MBV1 or MBV2).

What does the LakeWood Model 150 Part Number mean?

• Part Number 1269089 is just the Model 150 Controller
• Part Number 1269092 is Automated Kit for 1/2" pipes - Includes 150 Controller, SR2 Sensor, 1/2" Union, Orifice plate
• Part Number 1269260 is Automated Kit for 3/4" pipes - Includes 150 Controller, SR2 Sensor, 3/4" Union, Orifice plate,
• Part Number 1269093 is for Continuous Sampling - Includes 150 Controller, SR2 Sensor, PLKT**.

** The PLKT Plumbling Kit Includes sample/cycle and continuous sample kit. Unions, Orifice plates, Cross, Tees, and Manual Block Valve Only. Does not include piping.

For new steam boiler startups, consider purchasing our Steam Boiler Startup Kit.
