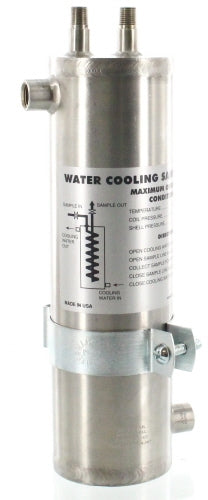

Boiler Blowdown Cooler
Model Number CW-ESC-SS is used as a safe method of obtaining a water sample from boilers, feedwater lines, and steam lines. The specifications are as follows:
- Stainless Steel Shell
- Stainless Steel End Caps
- 1/4" NPT Stainless Steel Adaptors
- Continuous 316 Stainless Steel Coil
- Coil rated to 2,500 psi
- Shell Rated to 250 psi
- Overall Length 13 5/8"
- Shell Diameter 3 1/2"
- 3" Pipe Clamp
- 3/8" Steel Female Inlet and Outlet
- 10 pounds
ChemWorld also stocks Neptune
SC-100,
SC-316, and
SC-600 sample coolers in Salt Lake City, Utah, and Atlanta, Georiga. These sample coolers are ideal for all your
boiler chemicals needs.
- I have a question about the CW-SSTL , Boiler Water Sample Cooler, what is the surface area of cooling?
- The Heat Exchange Area for our Boiler Sample Coolers is one square foot.
- I am interested in the Boiler Sample Cooler - SSTL Shell & Coil but would like to know what size the sample water fittings are, it looks like the bulletin only has the cooling water fittings on it.
- The sample connections are 1/4" MNPT connections.
