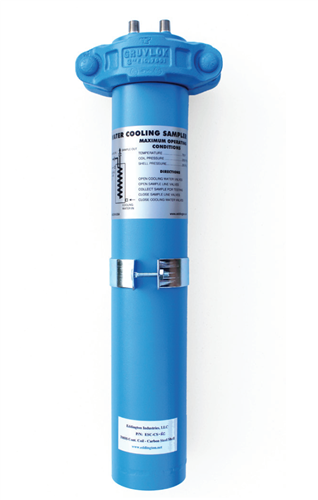

Sample Cooler Removable Coil

Model Number ESC-CS-RC is used as a safe method of obtaining a water sample from boilers, feedwater lines, and steam lines. The coil is removable for easy cleaning
The specifications are as follows:

• Shell Material: CS ASTM A106, gr B
• End Plate Material: CS ASTM A108, gr 1018
• 316 Stainless Steel cooling coil
• Coil Pressure: 2250 PSIG @ 750°F
• Shell Pressure: 450 PSIG @ 250°F
• Dimensions: 26” x 6 1/2”
• Mounting Bracket Included
• Weight: 21 1/2 pounds

ChemWorld also stocks Neptune SC-100, SC-316, and SC-600 sample coolers in Salt Lake City, Utah, and Atlanta, Georiga. These sample coolers are ideal for all your boiler chemicals needs.

What are the Inlet & Outlet sizes for the ESC-CS-RC Sample Cooler?

Our Removable Coil Sample Cooler has these connections:
• Process Connections: 1/4" MNPT
• Cooling Water Connections: 1/2" FNPT
