Stenner Pump 85MPHP17
Stenner Pump 85MPHP17 is a very popular fixed head Stenner Pump Model. This stocked pump model number breakdown is 85MFH2A1S.

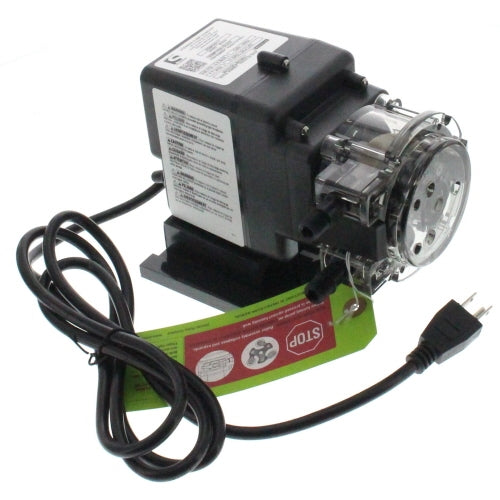

Fast 1 to 2-day shipping to over 95% of the USA. Chemworld also sells just a replacement Stenner 85MPHP17 pump with no accessories as in the photo.
What is the rating of the Stenner Model 85MPHP17?

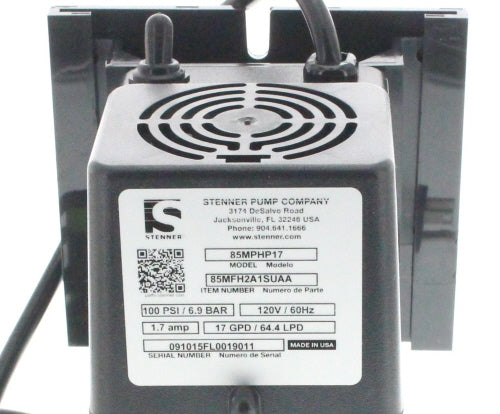

The break down of this Stenner Model 85MPHP17 is 85MFH2A1S.
- Fixed head rated at 100 psi.
- Rated at 17.0 GDP.
- Voltage/Hertz is 110/120 Volt.
- 1/4" suction and discharge tubing size.

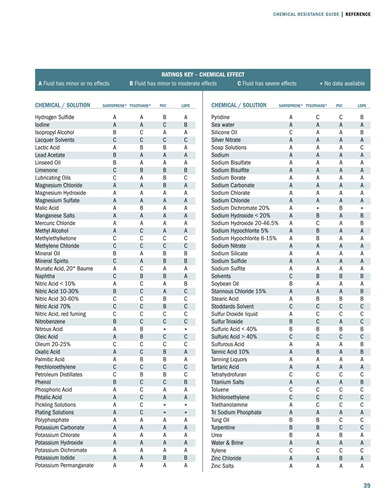

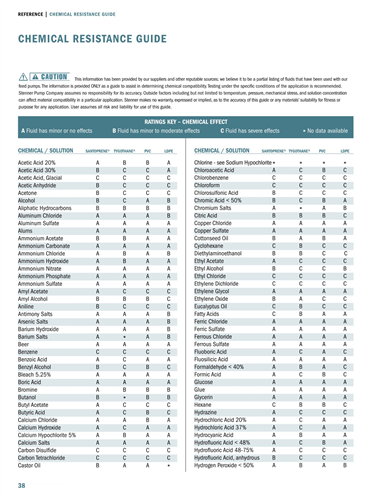

- Santoprene tube material. Check out the material compatibility chart, if you are concerned about chemical compatibility.
Note: There are other options for Stenner 85MPHP17 designs. If you need a different voltage, tube size, or material discharge size please refer to our main Stenner 85M page.

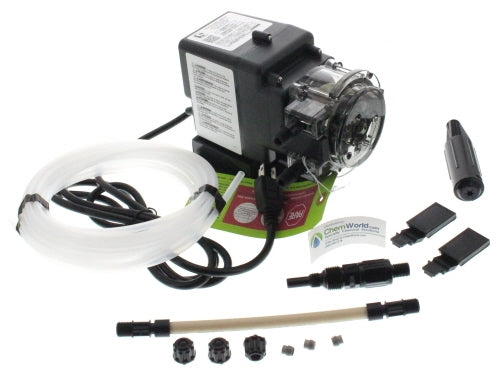

Pump includes:
- THREE 1/4" chemical injection check valve.
- ONE Chemical Injection Quill 100 psi (6.9 bar).
- ONE 1/4" weighted suction line strainer.
- ONE 1/4" x 20 foot white (clear) roll suction/discharge tubing.
- ONE additional Stenner Number 7 pump tube.
- TWO additional latches.
- ONE mounting bracket.
- Optional Stenner Pump rain roof or rain cover & rain roof.
ChemWorld also provides a replacement Stenner Pump 85MPHP17 without all the items in the kit. Note: This is a 1/4" suction and discharge pump. If you require a 1/4" black suction OR a different discharge tube, please order Stenner Pump 85MHP17.
Need other options for your Stenner Pump. Check out our main Stenner Pump product page.
Need to convert to a 3/8" discharge tube?
Convert your Stenner Pump to a 3/8" discharge tube size by ordering the Stenner 1/4" to 3/8" tube adapters. You will also require a 3/8" chemical injection quill if you are injecting the product into a pipe.Is there a warranty on the Stenner 85MPHP17?
Yes, these pumps come with a limited 1 year warranty from the date of purchase. Please note that pump tube assemblies and rubber components are considered perishable and are not covered by this warranty. Any tampering with major components, chemical damage, faulty wiring, weather conditions, water damage, power surges, or products not used with reasonable care and maintained in accordance with the instructions will void the warranty.
