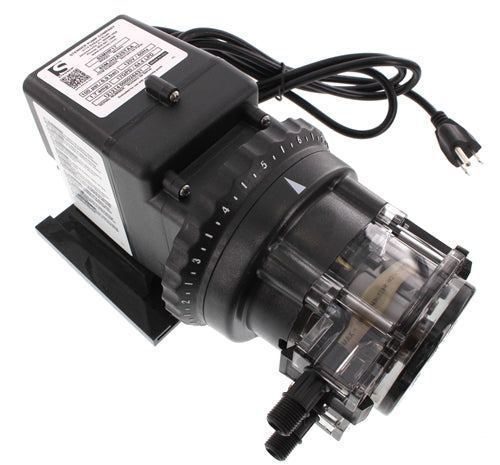

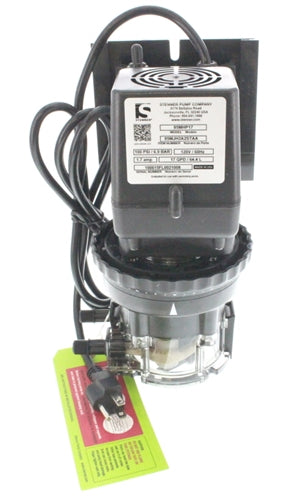

Stenner Pump 85MHP17

This is the most popular Stenner Pump model 85MJH2A2S. The product is stocked in Salt Lake City, Utah; Detroit, Michigan; & Atlanta, Georgia.

1 to 2-day shipping to 95% of the USA. ChemWorld also sells just the Stenner 85MHP17 pump with no accessories as in the photo.

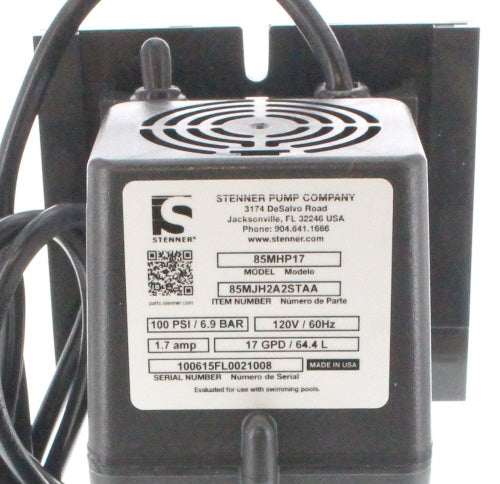

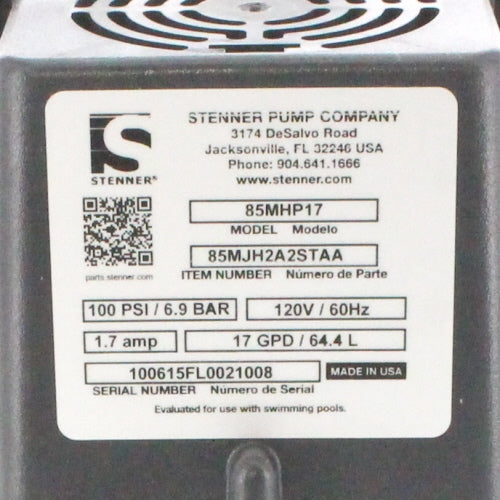

What is the rating of Stenner Model 85MHP17?
The break down of this Stenner Model 85MHP17 is 85MJH2A2S.

1. Adjustable head rated at 100 psi.
2. Rated at 0.8 to 17.0 GPD.
3. Voltage/Hertz is 110/120 Volt.
4. 1/4" inch suction and discharge tubing size.

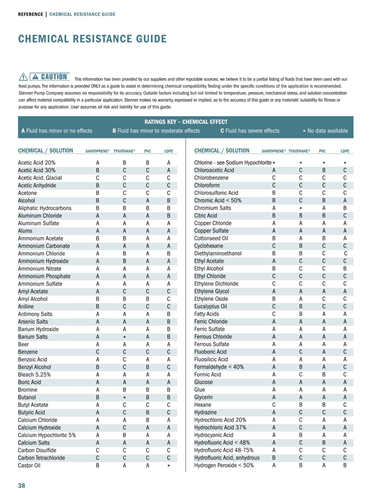

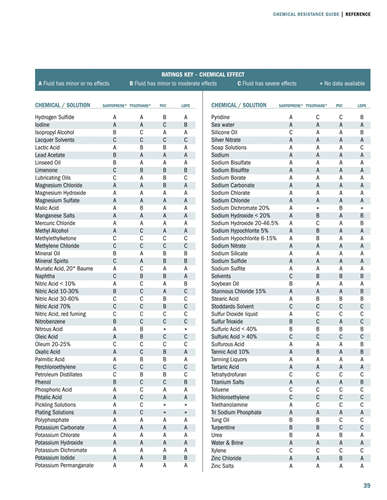

5. Santoprene tube material. Check out the material compatibility chart, if you are concerned about chemical compatibility.

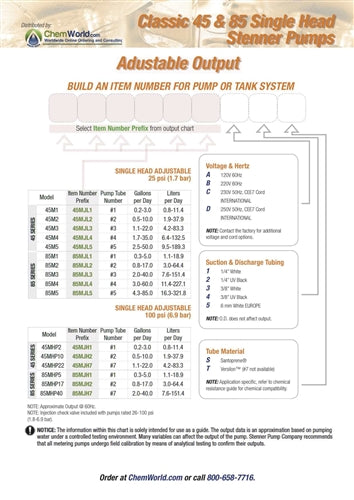

There are other options for Stenner 85MHP17. If you need a different voltage, tube size, or material discharge size please refer to our main 85MHP17 page.

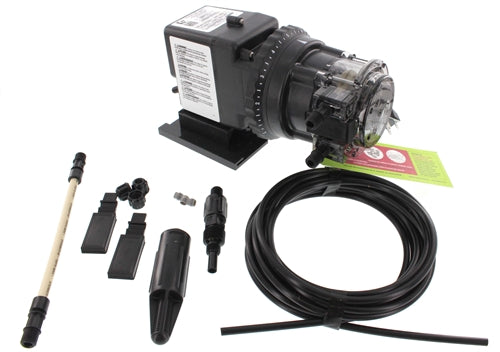

Pump Kit includes (everything in the picture):

• THREE 1/4" chemical injection check valve.
• ONE Chemical Injection Quill 100 psi (6.9 bar).
• ONE 1/4" weighted suction line strainer.
• ONE 1/4" x 20-foot black roll suction/discharge tubing. Larger chemical tube lengths and may be ordered.
• ONE additional Stenner Number 2 pump tube.
• TWO additional latches.
• ONE mounting bracket.
• Optional Stenner Pump rain roof or rain cover & rain roof.

ChemWorld also provides a replacement Stenner Pump 85MHP17 without all the items in the kit.

Need other options for your Stenner Pump. Check out our main Stenner Pump product page.

Need to convert to a 3/8" discharge tube?
Convert your Stenner pump to a 3/8" discharge tube size by ordering the Stenner 1/4" to 3/8" tube adapters. You will also require a 3/8" chemical injection quill if you are injecting the product into a pipe.I use this for Chlorine with my water system. The Motor is fine. It lost prime and leaks out the bottom. I think the hose inside may have broke. What are my options for getting it fixed? That sounds like one of the replaceable pump tubes is damaged. We recommend cleaning the pump ASAP and to replace the tube. This pump uses the #2 tube. Any damages caused by a tube rupture are not covered by Stenner‘s warranty policy.

Do you carry the 220V version of the 85MHP17 Pump? Yes we do. Please choose the Model and Voltage from the drop down menu on our 85M Pump Series page.
