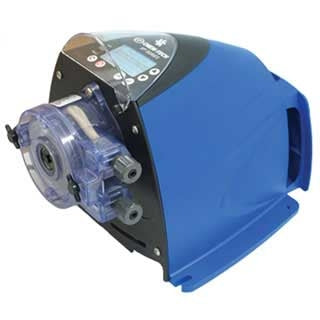

ChemTech XPV

ChemTech XPV. Listed below are the basic pump specifications for Chem-Tech XPV.

Model Number Breakdown:
XP008 = 8 GPD (1.3 LPH) - Tube Size 2
XP017 = 17 GPD (2.7 LPH) - Tube Size 3
XP033 = 33 GPD (5.2 LPH) - Tube Size 4
XP055 = 55 GPD (8.7 LPH) - Tube Size 6
XP100 = 100 GPD(15.8 LPH) - Tube Size 8

Electrical Options:
L = 115V, 60Hz
H = 230V, 50/60Hz
R = 230V, 50Hz with Grounded Right Angle European Plug
Note: Note: 50Hz pumps will produce 5/6 of the rated flow.

Drive Options:
V = Variable input Control with I/O Cable
G = Duplex Head - Low pressure Norphene with 1/4" Tube Fitting

Tubing Options:
L = Low Pressure Norprene with 1/4" Tube Fittings
H = High Pressure Norprene with 1/4" Tube Fittings
3 = Low Pressure Norprene with 3/8"Tube Fittings
4 = High Pressure Norprene with 3/8" Tube Fittings
F = Fluran, Acid Resistant Tubing with 1/4" Tube Fittings (Does not include strainer & injector accessories) Fluran, Acid Resistant Tubing with 3/8" Tube
G = Fittings (Does not include strainer & injector accessories)

System Options:
X = Pump Only
1 = 15 Gallon Tank System
3 = 35 Gallon Tank System
T = 15 Gallon ITS System
