Description

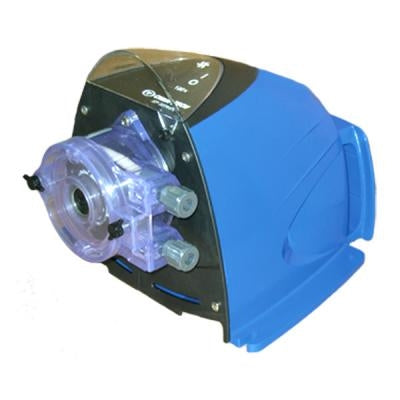

ChemTech XP030
ChemTech XP030.- Max. Flow rate: 30 gpd (4.7 lph)
- Speed 30 rpm
- Standard models listed are 115 VAC.
| Model Number | Max Pressure |
Controls |
Tubing |
Tube Size |
|---|---|---|---|---|
| XP030L1HX |
80 psi
|
Pulse 0.1 to 1.0*
|
1/4" |
6
|
| XP030L2HX |
80 psi
|
Pulse 0.2 to 10* | 1/4" | 6 |
| XP030L4HX |
80 psi
|
Dry contact**
|
1/4"
|
6
|
| XP030LA4X |
80 psi
|
20:1*** | 3/8" | 6 |
| XP030LAHX |
80 psi
|
20:1*** | 1/4" | 6 |
| XP030LFHX |
80 psi
|
Fixed rate^ | 1/4" | 6 |
Includes Norprene material tube with 1/4" tube fittings.
* Pulse input, 0.1 to 1.0 or 0.2 to 20 second timer.
** Dry contact input - fixed rate pump.
*** 20:1 turndown, on / off with timer.
^ Fixed rate, on / off only
