Description
Stenner SVP
As of January 2022 Stenner Pump company no longer manufactures this Series. Please refer to the Stenner S420 SERIES Pumps for a drop in replacement.Stenner Series SPV Pumps - Easy to order page. Stenner SPC variable models include models SVP1H1, SVP1H2, SVP1H7, SVP1L1, SVP1L2, SVP1L3, SVP1L4, SVP1L5, SVP4H1, SVP4H2, SVP4H7, SVP4L1, SVP4L2, SVP4L3, SVP4L4, and SVP4L5
How to understand the part number:
The "SVP" the base part number. The following digits are the pump type 1 (manual) and 4 (4 to 20 mAMP). The "L" and "H" mean low and high pressure. Low pressure is rated to 25 psi and the high pressure is 100 psi. The next digit is the pump tube size (1,2,3,4,5,7), which determines the GDP output.
Here are the page ordering directions:
- Choose your Stenner SPV option - This option determines the GDP and psi rating.
- Choose the voltage and hertz.
- Choose the material suction and discharge tubing size and material.
- Choose the tube material. When electing the tube type use the material compatibility chart.
Ordering example: The product as you see it is model: SPVJL1A1S. When you choose the options it will change to the exact part number you need.

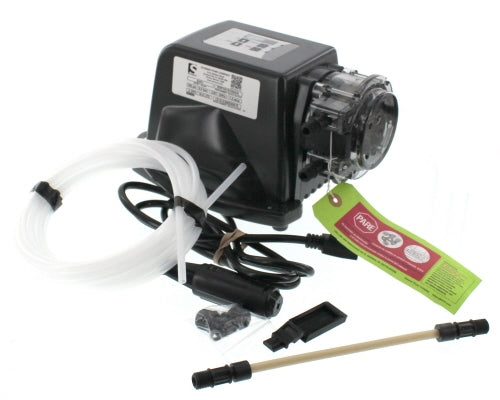

Pump option includes:
- QTY 3 - 1/4" connecting nuts & ferrules (1/4" tubes) or three 3/8" to 1/4 adaptors.
- QTY 1 - Chemical injection check valve 100 psi (6.9 bar) or 1 injection fitting 25 psi (1.7 bar).
- QTY 1 - 1/4" GDPor 3/8" Weighted suction line strainer.
- QTY 1 - 20' white or UV black roll suction/discharge tubing (1/4" or 3/8").
- QTY 1 - Additional pump tube.
- QTY 2 - Additional latches.
- QTY 1 - Mounting bracket.
