Stenner Pump 85MPHP17

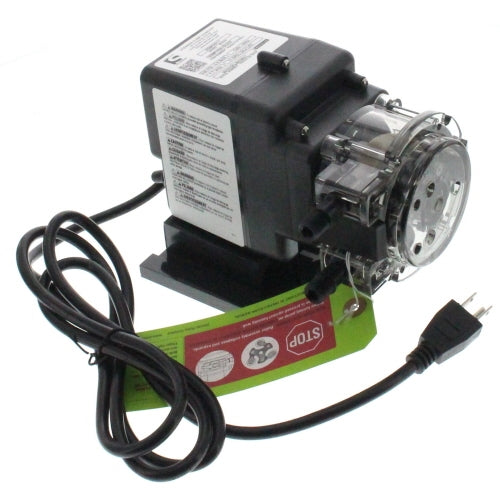

Stenner Pump 85MPHP17 is a very popular fixed head Stenner Pump Model. The item includes here is just the motor and pump head assembly with no accessories as seen in the above photo.

Fast 1 to 2 day shipping to over 95% of the USA.

What is rating of Stenner Model 85MPHP17?

1. Fixed head rated at 100 psi.
2. Rated at 17.0 gpd.
3. Voltage/Hertz is 110/120 Volt.

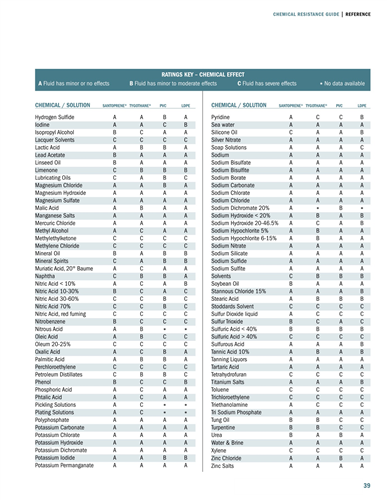

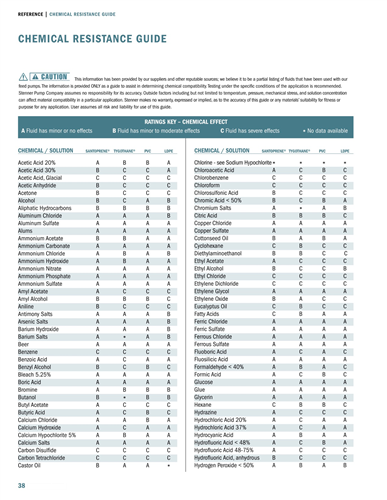

4. Santoprene tube material. Check out the material compatibility chart, if you are concerned about chemical compatibility.

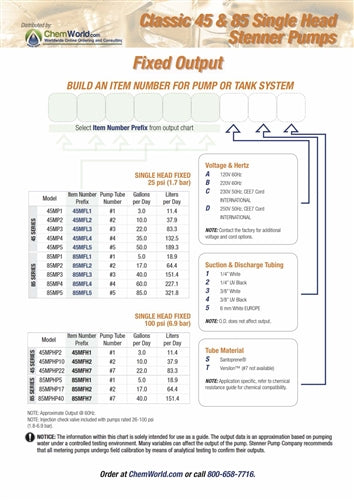

Note: There are other options for Stenner 85MPHP17 designs. If you need a different voltage, tube size, or material discharge size please refer to our main Stenner 85M page.

Product Reorder Options:

Hose Fittings:

• Add two Stenner 1/4" Hose Fittings (Nut & 1/4" Ferrule) or two Stenner 3/8" Connecting Nuts with gray Adaptors.

1/4" or 3/8" Chemical Tubing:

• Replace out your chemical tubing by ordering: 1/4" White or UV Black or 3/8" White or UV Black chemical tubing.

Injection Quill:

• Add a replacement 1/4" chemical injection quill or 3/8" chemical injection quill. Both injection quills come with a internal Santoprene "Duckbill".

Stenner DuckBill:

• Add a replacement Santoprene check valve "Duckbill" to your existing check valve.

Suction Side:

• Add a 1/4" Weighted Suction Strainer or a 3/8" Weighted Suction Line Strainer.

What amperage is the Stenner 85MPHP17 Pump?

The electrical information for the 85MPHP17 pump is the following: Motor Voltage (Amp Draw) 120V 60Hz 1PH (1.7).

Does the 85MPHP17 model with "pump and motor only" include a stenner tube pre-installed?

Yes, the 85MPHP17 pump includes a pre-installed pump tube.

---
