Description
Oil Leak Detection Kit
The Most Powerful Kit to Find Leaks in Any Size Oil-Based Fluid System. This is a 16 oz container size kit. Prevents expensive equipment breakdowns and potential environmental problems. Ideal for pinpointing leaks in hydraulic systems, compressors, engines, gearboxes and fuel systems. Complete oil and hydraulic system kit.How much leak detection fluid should I use?
In general, this is the feedrate:
- Lightweight hydraulic fluid - 1 oz per 8 gallons (This kit does up to 128 gallons)
- Very dark or intensely blue hydraulic fluid and lubrication fluids - 1 oz per 4 gallons(This kit does up to 64 gallons)
- Compressor oil - 1 oz per 4 gallons(This kit does up to 64 gallons)
- Engine oil - 1 oz per 3 gallons Gearbox oil - 1 oz per gallon (This kit does up to 16 gallons)

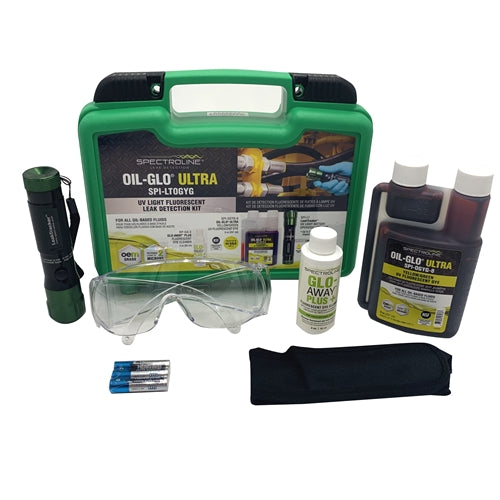

- SPI-LT - LeakTrackerâ„¢ high-intensity, battery operated UV LED leak detection flashlight
- SPI-OGYG-8 - Patented 8 oz (237 ml) twin-neck bottle of concentrated oil dye (glows yellow-green). Treats up to 64 gallons (242 L) of fluid.
- RP-UVS-30 - UV-absorbing glasses
- RP-GA-2 - GLO-AWAYâ„¢ Plus fluorescent dye cleaner
- 3x AAA Batteries
- Carrying Case
- Dye Treatment Tags
- Belt Holster
What type of systems would we use this product in?
SPI-LTOGYG leak detection kit is ideal for pinpointing leaks in hydraulic systems, compressors, engines, gearboxes and fuel systems.
TO OPERATE:
Remove the battery insulator before first use. Press the button once to turn the flashlight on. Press it again to turn the flashlight off. Batteries are included.
FAST, EASY LEAK DETECTION:
- Add the appropriate fluorescent dye and run the system to circulate. (See instructions included with dyes.)
- For best results, use in low-light conditions.
- Scan the system with the flashlight while wearing the fluorescence- enhancing glasses. You'll easily see the precise location of every leak by its bright fluorescent glow.
After the leaks are repaired, clean the remaining dye from the leak sites with Spectroline GLO-AWAY dye cleaner or a shop solvent. Remaining dye could be mistaken for a leak. Check all areas again with the lamp to make sure no dye remains. Run the system for another 5 to 10 minutes and reinspect with the SPI-LT - LeakTrackerâ„¢. No glow means that all leaks have been properly repaired.
TO REPLACE BATTERIES:
Twist the end cap counterclockwise to open. Insert 3 AAA batteries with the positive end toward the lamp head. Replace the end cap.
