Description
High Flow Chemical Metering Pump
Neptune Electric Diaphragm Metering PZD Pumps.Pressure and gpd rating:
- PZD-32 models are rated to 137 gpd (5.7 gph), 45 psi maximum pressure. Manual Control.
- PZD-52 models are rated to 205 gpd (8.5 gph), 30 psi maximum pressure. Manual Control.
- PZDi4-32 models are rated to 137 gpd (5.7 gph), 45 psi maximum pressure. 4 to 20 mADC/Pulse.
- PZDi4-52 models are rated to 205 gpd (8.5 gph), 30 psi maximum pressure. 4 to 20 mADC/Pulse.
- PZDi8-32 models are rated to 137 gpd (5.7 gph), 45 psi maximum pressure. 4 to 20 mADC/Pulse.
- PZDi8-52 models are rated to 205 gpd (8.5 gph), 30 psi maximum pressure. 4 to 20 mADC/Pulse.

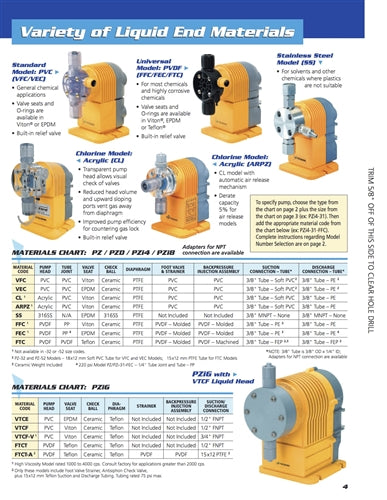

Material:
- Models VTCF (Viton) is a PVC head.
- Models FTC (Teflon) is a FTCT head.
- Models SS (EPDM) is a 316 SSTL head.
- The part number above ( ) is the seal type (EPDM/Viton).

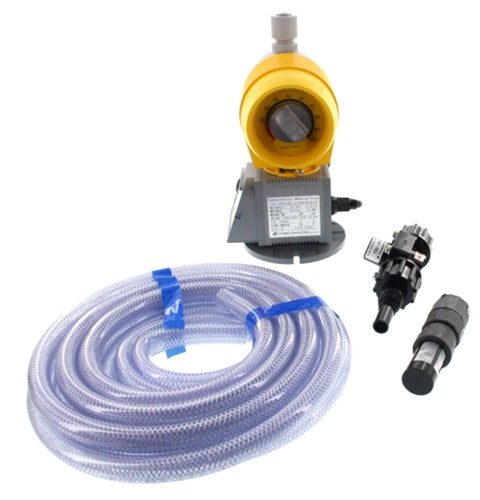

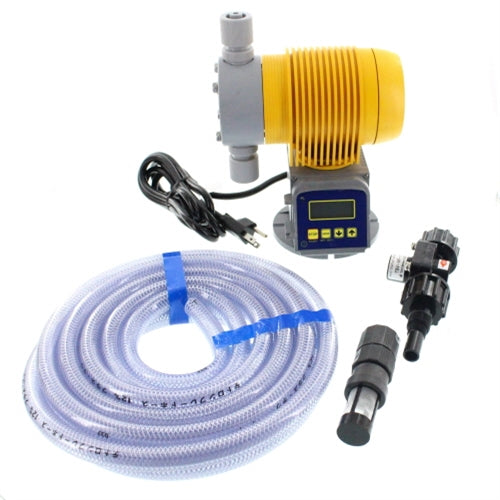

What is included?
Each pump (except the SS Model) comes with:
- Foot Valve Strainer
- Air Bleed Valve
- Suction/Discharge Tubing
- Injector Quill with Check Valve
