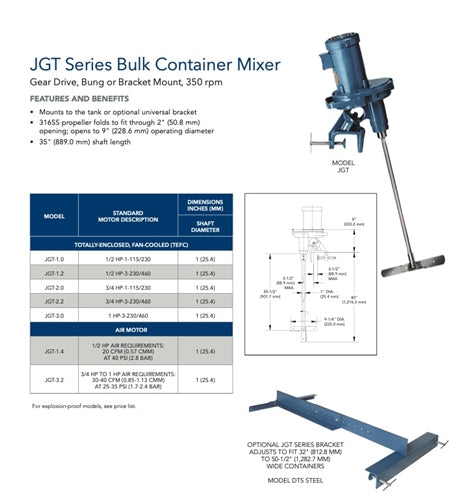

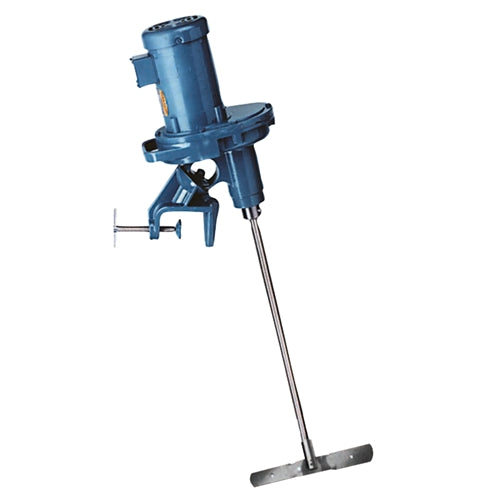

Neptune JGT Bulk Container Mixers. Gear Drive, Bung or Bracket Mounting. Vertical motor Series JGT models are used on individual, free standing bulk containers. This series comes at 350 rpm.
*** Note the plastic attachment on the photo above does not come with this pump. If you need that attachment, you must order the "HGL" Neptune Series. This unit can be mounted with the optional bracket seen above.

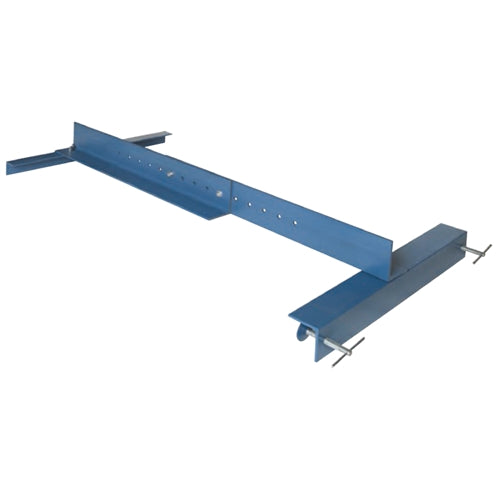

Mounts to the tank or optional universal bracket.
316 stainless steel propeller folds to fit through 2 inch opening. Opens to 9 inch operating diameter.
1/2HP AIR MOTOR
**
Air Requirements: 20 CFM at 40PSI
50+
JGT 4.0
3/4HP-1-115/230-TEFC
65+
JGT 4.2
3/4HP-1-115/230-EP
75
JGT 4.1
3/4HP-3-230/460-TEFC
60+
JGT 4.3
3/4HP-3-230/460-EP
70
JGT 5.1
1HP-3-230/460-TEFC
75
JGT 5.3
1HP-3-230/460-EP
85
JGT 5.4
3/4HP TO 1HP AIR MOTOR** Air Requirements: 30-40 CFM at 25-35PSI
55
** Requires Airset.
What is the viscosity acceptable viscosity range for a Neptune JGT-5.4 mixer?
The JGT-5.4 should be good for 5000 cps up to a 500 gallon tank. You would need to be putting the 40 CFM @ 40 PSI thru the air motor though.
