Product Code: NEPTUNE-56X
Neptune Pump
Neptune 560 Series: 562-S-N5
Neptune Motor Options: Standard Motor
Liquid End Option: Standard Liquid End
Price:
$3,049.00
Stock:
In stockFREE DELIVERY Availability: Usually Ships in 5 to 7 days

Description

Neptune Metering Pump

Neptune Metering Pump 562 to 567. The Series 560 Models come with a standard motor 1/2 HP, 1 Phase, 115/60 TEFC. Choose a different motor if required for option number 2. Also, some high pressure positive displacement pumps applications may require pressure relief valves and pulsation dampeners.

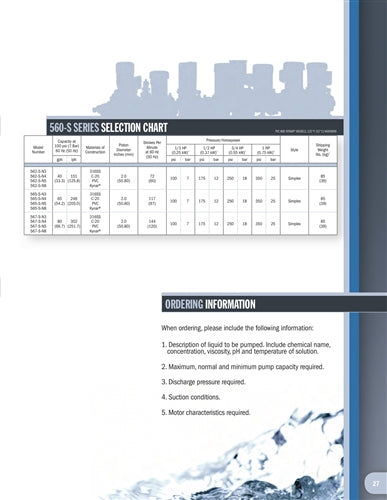

Modle Type Liquid End Construction Capacity at 100 psi gph Pressure (psi) at 1/3 HP Pressure (psi) at 1/2 HP Pressure (psi) at 3/4 HP Pressure (psi) at 1 HP Shipping Weight (lbs)
562-S-N3 Simplex 316 SSTL 40.0 100 175 250 350 85
562-S-N4 Simplex C-20 40.0 100 175 250 350 85
562-S-N5 Simplex PVC 40.0 100 175 250 350 85
562-S-N8 Simplex Kynar 40.0 100 175 250 350 85
565-S-N3 Simplex 316 SSTL 65.0 100 175 250 350 85
565-S-N4 Simplex C-20 65.0 100 175 250 350 85
565-S-N5 Simplex PVC 65.0 100 175 250 350 85
565-S-N8 Simplex Kynar 65.0 100 175 250 350 85
567-S-N3 Simplex 316 SSTL 80.0 100 175 250 350 85
567-S-N4 Simplex C-20 80.0 100 175 250 350 85
567-S-N5 Simplex PVC 80.0 100 175 250 350 85
567-S-N8 Simplex Kynar 80.0 100 175 250 350 85
562-D-N3 Duplex 316 SSTL 80.0 100 175 250 350 110
562-D-N4 Duplex C-20 80.0 100 175 250 350 110
562-D-N5 Duplex PVC 80.0 100 175 250 350 110
562-D-N8 Duplex Kynar 80.0 100 175 250 350 110
565-D-N3 Duplex 316 SSTL 130.0 100 175 250 350 110
565-D-N4 Duplex C-20 130.0 100 175 250 350 110
565-D-N5 Duplex PVC 130.0 100 175 250 350 110
565-D-N8 Duplex Kynar 130.0 100 175 250 350 110
567-D-N3 Duplex 316 SSTL 160.0 100 175 250 350 110
567-D-N4 Duplex C-20 160.0 100 175 250 350 110
567-D-N5 Duplex PVC 160.0 100 175 250 350 110
567-D-N8 Duplex Kynar 160.0 100 175 250 350 110
