Neptune RGT Mixers

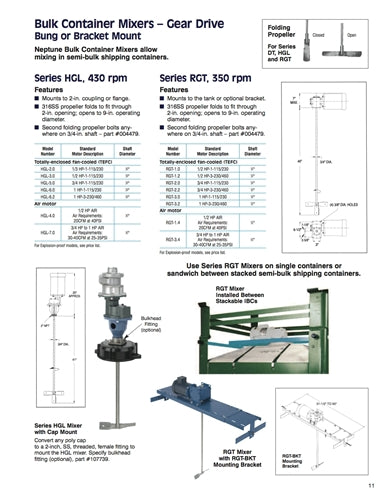

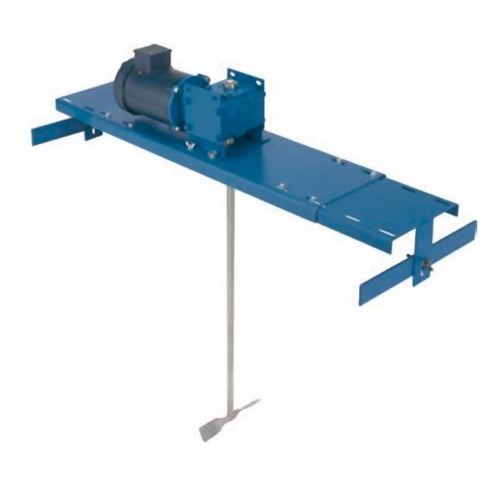

Neptune RGT Bulk Container Mixers. Horizontal motor models RGT series are low profile, allowing the mixer to fit between stacked containers (additional boosters or spacers may be required to allow required clearance). 316 stainless steel propeller folds to fit through 2 inch opening. Opens to 9 inch operating diameter. Optional adjustable mounting bracket fits 32" to 50.5" wide containers (model DTS)

Model Number	Motor Description	Approx. Weight (lbs)
RGT 1.0	1/2HP-1-115/230-TEFC	60+
RGT 1.1	1/2HP-1-115/230-EP	75
RGT 1.2	1/2HP-3-230/460-TEFC	55+
RGT 1.3	1/2HP-3-230/460-EP	75
RGT 1.4	1/2HP AIR MOTOR ** Air Requirements: 20CFM at 40PSI	50+
RGT 2.0	3/4HP-1-115/230-TEFC	65+
RGT 2.1	3/4HP-1-115/230-EP	75
RGT 2.2	3/4HP-3-230/460-TEFC	60+
RGT 2.3	3/4HP-3-230/460-EP	70
RGT 3.0	1HP-1-115/230-TEFC	65+
RGT 3.1	1HP-1-115/230-EP	75
RGT 3.2	1HP-3-230/460-TEFC	75
RGT 3.3	1HP-3-230/460-EP	85
RGT 3.4	3/4HP TO 1HP AIR MOTOR** Air Requirements: 30-40CFM at 25-35PSI	55

** Requires Air Set.

We are looking for a Neptune Mixer to blend paint in a 275 Gallon tote. The Viscosity of the paint is approx. 90 Krebs at a temperature of 70 degrees. Which Mixer setup to you recommend?: Our recommendation is the RGT-1.0 Mixer with the RGT-BKT Mounting Bracket. We would have to check the height of the tote prior to ordering to make sure the setup fits but generally the standard shaft length works in 275 gallons totes.
How long is the shaft on the Neptune RGT-3.0 Mixer?: The shaft length with the opened Propeller is 45-3/8".
