Description
Neptune BF Mixers

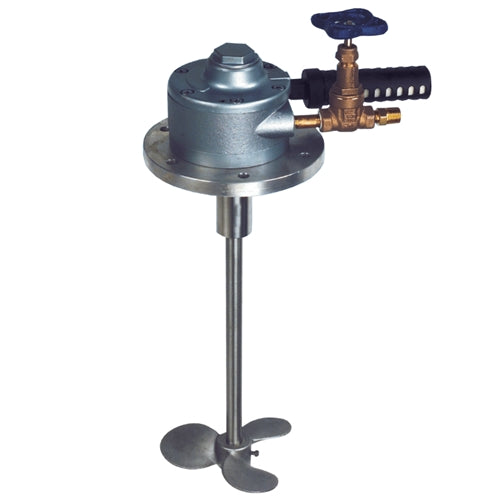

Neptune Flange Mount Series "BF" Mixers. This is a direct drive air mixer, clamp mount. Order directly online today. 0 to 2,000 rpm.| Model Number* | Motor Description | Mounting Flange | Shaft Diameter | Shaft Length | Single Propeller Diameter | Dual Propeller Diameter | Approx. Weight |
|---|---|---|---|---|---|---|---|
| BF-5.4-27 |
1 HP Air Motor |
6" |
5/8" |
15" |
6" |
6" |
30 lbs |
| BF-5.4-36 | 1 HP Air Motor |
6" |
5/8" |
27" |
6" |
6" |
30 lbs |
| BF-5.4-48 | 1 HP Air Motor |
6" |
5/8" |
48" |
6" |
6" |
30 lbs |
| BF-7.4-27 | 2 HP Air Motor |
7" |
3/4" |
27" |
8" |
8" |
40 lbs |
| BF-7.4-36 | 2 HP Air Motor | 7" |
3/4" |
48" | 8" | 8" |
44 lbs |
| BF-7.4-48 | 2 HP Air Motor | 7" |
3/4" |
60" |
8" | 8" |
50 lbs |
| BC-8.4-27 | 3 HP Air Motor | 7" | 1" | 27" | 10" | 10" | 45 lbs |
| BC-8.4-48 | 3 HP Air Motor | 7" | 1" | 48" | 10" | 10" | 50 lbs |
| BC-8.4-60 | 3 HP Air Motor | 7" | 1" |
60" |
10" | 10" |
60 lbs |
* Add suffix S or D to the part number to represent Single or Dual Propeller unit.
Other notes:
- Air consumption:
- 1HP - 16 CFM@70 psi
- 2HP - 20 CFM@70 psi
- 3HP - 30 CFM@70 psi
- Order Air Set for use with Air motors above - Part Number 100804 for greater then 1 HP.
