Neptune BC Air Mixers

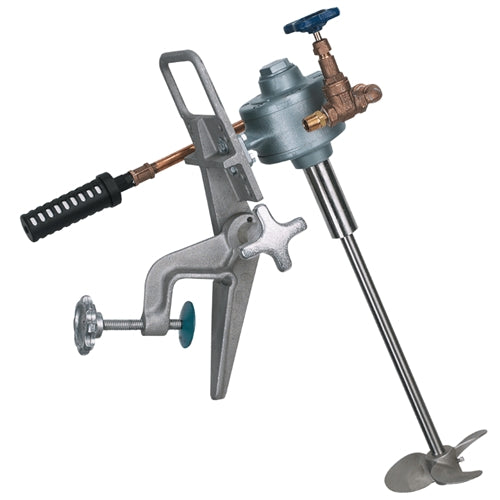

Neptune Series "BC" Mixers. This is a direct drive air mixer, clamp mount. Order directly online today. 0 to 2,000 rpm.| Model Number* | Motor Description | Shaft Diameter | Shaft Length | Single Propeller Diameter |
Dual Propeller Diameter |
Approx. Weight |
|---|---|---|---|---|---|---|
| BC-5.4-27 |
1 HP Air Motor |
5/8" |
27" |
6" |
6" |
30 lbs |
| BC-5.4-36 | 1 HP Air Motor | 5/8" |
36" |
6" |
6" |
30 lbs |
| BC-5.4-48 | 1 HP Air Motor | 5/8" |
48" |
6" |
6" |
30 lbs |
| BC-7.4-27 | 2 HP Air Motor |
3/4" |
27" |
8" |
N/A |
40 lbs |
| BC-7.4-36 | 2 HP Air Motor |
3/4" |
36" | 8" | 8" |
40 lbs |
| BC-7.4-48 | 2 HP Air Motor |
3/4" |
48" |
8" | 8" |
45 lbs |
| BC-7.4-60 | 2 HP Air Motor | 3/4" |
60" |
8" | 8" |
50 lbs |
* Add suffix S or D to the part number to represent Single or Dual Propeller unit.
Other notes:
- Air consumption:
- 1HP - 16 CFM@70 psi
- 2HP - 20 CFM@70 psi
- Order Air Set for use with Air motors above - Part Number 100804 for greater then 1 HP.
