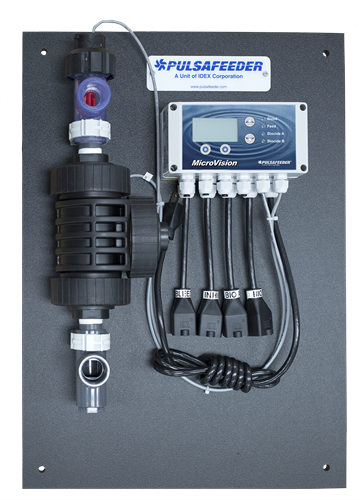

MicroVision MVS1PA Controller
MicroVision Conductivity Cooling Tower Controller Standard with Toroidal Sensor Technology! Toroidal sensors are not susceptible to fouling and eliminate the need for routine cleaning and calibration.
The MicroVision is a microprocessor-based conductivity controller with selectable timer and dual biocide control. Designed specifically for cooling tower applications, MicroVision comes standard with the features and functions you need for accurate monitoring and control of cooling tower water.
The MicroVision is a full function controller in a compact package that won’t break your budget!
The MicroVision controller comes standard with selectable timer, Dry contact/Hall Effect water meter input, dual biocide with pre-bleed, lockout, inhibitor interface, and four programmable start times per biocide, 4-20mA output, dry contact alarm output and 3 drum level inputs.
FEATURES
The MicroVision is a microprocessor-based conductivity controller with selectable timer and dual biocide control. Designed specifically for cooling tower applications, MicroVision comes standard with the features and functions you need for accurate monitoring and control of cooling tower water.
The MicroVision is a full function controller in a compact package that won’t break your budget!
The MicroVision controller comes standard with selectable timer, Dry contact/Hall Effect water meter input, dual biocide with pre-bleed, lockout, inhibitor interface, and four programmable start times per biocide, 4-20mA output, dry contact alarm output and 3 drum level inputs.
FEATURES
- Toroidal conductivity sensor factory calibrated and maintenance free.
- Large graphical display with large, easy to read font
-
Statistics screen with relay run time
-
Flow switch input
-
(3) drum level inputs
-
4-20 mA isolated analog output
-
Dry contact alarm output
-
Battery backup
-
Selectable timer (limit, %, % post bleed with limit, and water meter)
-
Dry contact/Hall Effect water meter input
-
Dual biocide control
- Bleed output supports solenoid valve or motorized ball valve.
OPERATING BENEFITS
- Easy to use.
- No calibration required
-
Reduced potential for fouling
-
Easy Installation
-
Two year warranty
-
Large range: 0 – 9,999 μS/cm
-
Simple user interface
- Compact size saves space and reduces freight cost.
We can provide all Microvision Controller models. If you do not see the model you need please email us via quotes@chemworld.com and we will get you pricing.
