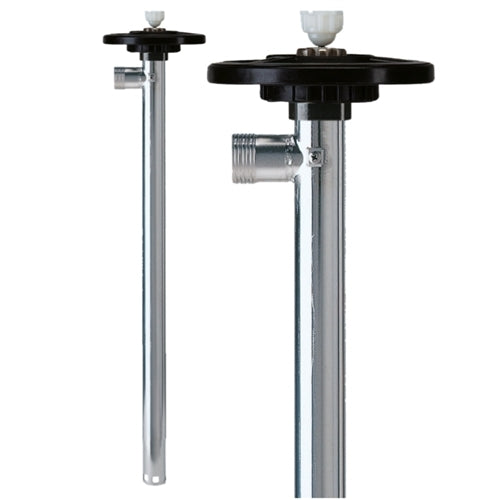

Lutz Sealless Stainless Steel Tube

Lutz Sealless Pump Tube SSTL with Rotor 27" to 78". For use in hazardous areas only in combination with Lutz explosion proof universal motors.

Part Number 0150-000 = 27" Immersion Length
Part Number 0150-001 = 39" Immersion Length
Part Number 0150-002 = 47" Immersion Length
Part Number 0150-113 = 55" Immersion Length
Part Number 0150-114 = 59" Immersion Length
Part Number 0150-115 = 63" Immersion Length
Part Number 0150-116 = 67" Immersion Length
Part Number 0150-117 = 78" Immersion Length

Liquid examples: Gasoline, solvents, alcohols, amines, benzol, toluene, xylene, paints and lacquers, etc.

Features:

• Optional with electric or air driven motors
• No grease fillings
• Hand wheel for quick motor assembly/disassembly and as carry handle
• Approved according to ATEX Directive 2014/34/EU, Category 1/2
• Radial-flow impeller (L) for higher delivery head

Benefits:

• Sealless construction (SL) cannot fail by dry running. This tube also comes in a sealed version.
• Lube-free pump tube, thus no contamination of the liquid
• High resistant pure carbon shaft bearing
• Two impeller geometries for a tailored pump characteristic

Special lengths 8" to 98" on request.

We are pumping Nitromethane from 55 Gallon drums into storage tanks. Which tube and Motor do you recommend?

We recoomend the 39" Stainless Steel Tube Part # 0150-001 with an explosion proof motor like the Lutz MEI6 Silverstar Explosion Proof Pump Head
