Description

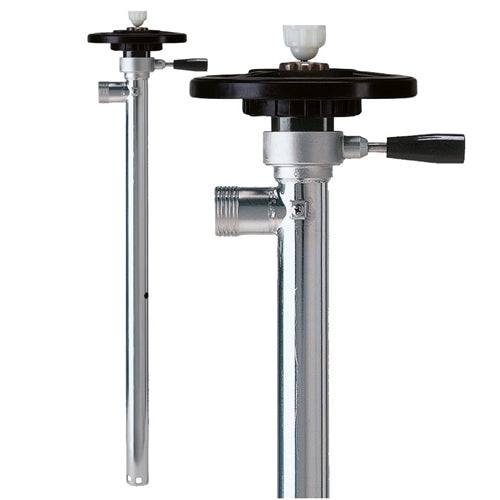

Mixing & Pumping Tube
Pump tube for mixing & pumping, SSTL with rotor: 39" & 47" LengthsPart Number 0151-240 = 39" Immersion Length (Drums)
Part Number 0151-255 = 47" Immersion Length (Totes)
Liquid examples: Emulsions, suspensions and dispersions, paints and lacquers.
Suitable for mixing and pumping of combustible and easily flammable liquids. For use in hazardous areas only in combination with our explosion proof universal motors.
These tubes also come in two other designs:
- PolyPropylene tube and impeller or rotor, hastelloy shaft: 39" & 47" lengths.
- PolyPropylene tube and impeller or rotor stainless steel shaft 39" & 47" lengths.
Features:
- Two functions („pumping“ and „mixing and pumping“) in one unit
- Optional with electric or air driven motors
- No grease fillings
- Modular, service friendly design
- Approved according to ATEX Directive 2014/34/EU, Category 1/2
- Axial-flow rotor (R) for higher flow rates
- Change between "pumping" and "mixing and pumping" without moving during operation via a small lever below the hand-wheel
- High mixing performance and flow rate for thorough homogenization and rapid drainage
- Lube-free pump tube, thus no contamination of the liquid
