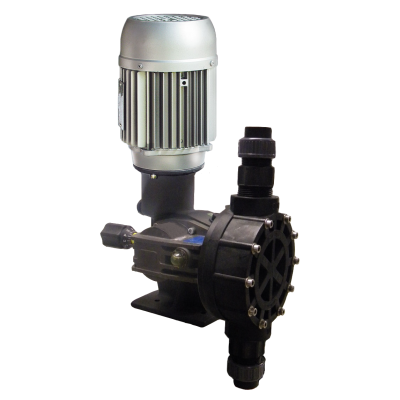

PulsaFeeder Blackline Series MD

Blackline Series MD Selection Guide.

Models P/N:

1A: 7 gph / max pressure: 150 PSI (10 BAR)
1B:14 gph / max pressure: 150 PSI (10 BAR)
1C: 22 gph / max pressure: 150 PSI (10 BAR)
1D: 29 gph / max pressure: 150 PSI (10 BAR)
1E: 35 gph / max pressure: 150 PSI (10 BAR)

Liquid End

KTP: PVDF Head / PTFE Valve Seat / Pyrex Valve Check Ball
PPP: Glass Filled Polypropylene Head / PVC Valve Seat / Pyrex Valve Check Ball
AAS: 316SS Head / 316SS Valve Seat / 316SS Valve Check Ball
KMM**: PVDF Head / Incoloy 825 Valve Seat / Hastelloy C-276 Valve Check Ball

Valve Connection

N: NPT Connection
B: BSPT Connection

Motor Selection

1: TEFC - NEMA 56C, 1P, 115/230V, 60Hz, 1/2 Hp
2: TEFC - NEMA 56C, 3P, 230/460V, 50/60Hz, 1/2 Hp (VFD 10:1)
3: = Ex. Proof - NEMA 56C, 1P, 115/230V, 60Hz, 1/2 Hp***
4: Ex. Proof - NEMA 56C, 3P, 230/460V, 60Hz, 1/2 Hp***
6: TEFC - IEC 71, 3P, 220/380/460V, 50/60Hz, .37kW (VFD 10:1, Required for CE Approved VFD)
X: No Motor - NEMA 56C Frame Ready
Y: No Motor - IEC 71 Frame Ready

VFD Option

A: No VFD
C: VFD, 115/230V, NEMA 4X, IP65 Enclosure, 1 Phase, Motor 2 & 6 Only

Discharge Head

XXX: No options (Default)

** For use with high concentration of Sulfuric acid and poly-alum-chloride.
*** Pricing for Explosion proof motors are quoted directly and varies per order ($900 and $1200 are estimates for quotes only). Please email us at quotes@chemworld.com for exactly costs.
