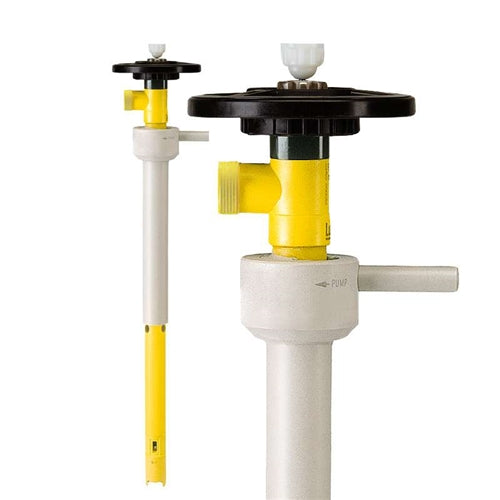

Lutz Mixing & Pumping Tube

Lutz mixing and pumping tube, polypropylene impeller, stainless steel shaft.

MPMS-PP 50/41 Impeller (L) Design: 39" Immersion Length (Sealed): Part Number 0103-150
MPMS-PP 50/41 Rotor (R) Design: 39" Immersion Length (Sealed): Part Number 0103-160
MPSL-PP 50/41 Impeller (L) Design: 39" Immersion Length (Sealless): Part Number 0110-150
MPSL-PP 50/41 Impeller (L) Design: 47" Immersion Length (Sealless): Part Number 0110-152 (for totes)
MPSL-PP 50/41 Rotor (R) Design: 39" Immersion Length (Sealless): Part Number 0110-160

Suitable for mixing and pumping of corrosive and neutral, aqueous up to slightly viscous liquids in non-explosive areas.

Liquid Examples: Emulsions, suspensions and dispersions, paints and lacquers

These tubes also come in two other designs:

• Stainless steel tube and shaft with rotor design: 39" & 47" lengths.
• PolyPropylene tube and impeller or rotor, hastelloy shaft: 39" & 47" lengths.

Features:

• Two functions („pumping“ and „mixing and pumping“) in one unit
• Optional with electric or air driven motors
• No grease fillings
• Modular, service friendly design
• Axial-flow rotor (R) for higher flow rates or impeller (L) designs

Benefits:

• Change between "pumping" and "mixing and pumping" without moving during operation via a small lever below the hand-wheel
• High mixing performance and flow rate for thorough homogenization and rapid drainage
• Lube-free pump tube, thus no contamination of the liquid

Special lengths 23" to 98" on request.
