Description
Lutz MEI6 Explosion Proof Pump Set
Part number MEI 6-120V/MSL-SS 41 SS Sets120 Volt, MEI6 Explosion Proof Motor, 39"-78" SS Tube Pump Set.
For hazardous fluids such as acetone, concentrated formic acid, ethyl acetate, butyl acetate, concentrated acetic acid, nicotine, toluol, styrol, etc.
Features:
- Optimized drum drainage
- Handwheel for quick motor assembly/disassembly and as a carry handle
- Radial-flow impeller (L) for higher delivery head
Benefits:
- Lube-free pump tube, thus no contamination of the liquid
- High resistant pure carbon shaft bearing
Immersion length: 39" - 55"
Pump capacity: max. 13.2 GPM (50 l/min.)
Pumping head: max. 52 ft. (16 m wc)
Viscosity: max. 760 cps (760 mPas)
Pumping head: max. 52 ft. (16 m wc)
Viscosity: max. 760 cps (760 mPas)

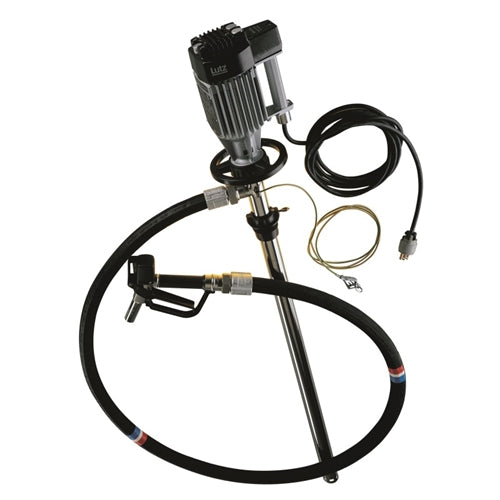

Pump set consisting of:
Lutz MEI6 Silverstar Explosion Proof Motor, pump tube MSL-SS 41 stainless steel, 6.5 foot conductive chemical tubing 3/4" with conductive fittings, stainless steel nozzle with swivel, ground & bonding wires, PP barrel adapter, wall hanger.
