Description

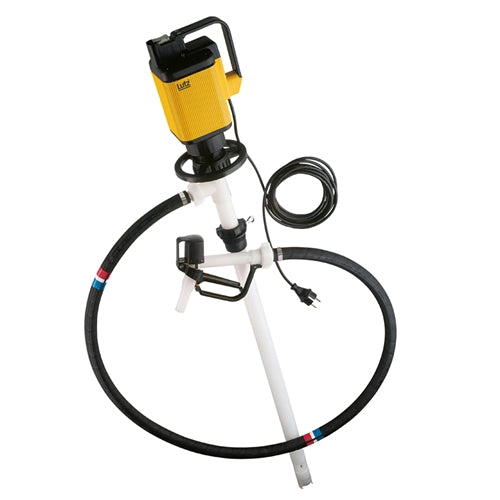

Lutz B55-5 PVDF Electric Pump Set
Part number B55T-5/MSL-PVDF 41 Sets120 Volt, B55-5 Lutz Motor, 27"-55" PVDF Tube Pump Set.
For concentrated acids and alkalis such as chloric acid, chromic acid, sulfuric acid, nitric acid, hydrofluoric acid, sodium hypochlorite, etc.
Features:
- No grease fillings
- Optimized drum drainage
- Modular, service friendly design
- Radial-flow impeller (L) for higher delivery head
Benefits:
- Lube-free pump tube, thus no contamination of the liquid
- All-purpose resistant PTFE shaft bearing
- Easy maintenance without special tools
- Sealing modules of the sealless pump are replaceable
Immersion length: 39" - 55"
Pump capacity: max. 13.2 GPM (50 l/min.)
Pumping head: max. 52 ft. (16 m wc)
Viscosity: max. 760 cps (760 mPas)
Pumping head: max. 52 ft. (16 m wc)
Viscosity: max. 760 cps (760 mPas)
Pump set consisting of:
- 120 Volt B55-T motor, pump tube PVDF 41-L-SL made of polyvinylidenefluoride, 6 foot special chemical hose 3/4" and hose connections, nozzle PVDF with swivel hose connection, hose clamps, drum adapter PP.
