Description
Lutz B2 0207-07 Series

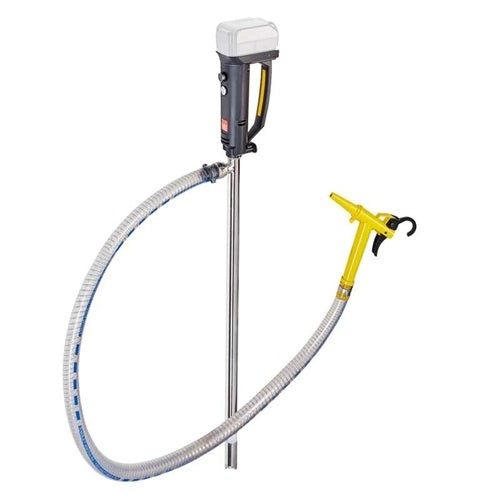

Lutz-0207-07 Series with nozzle SS Pump SetChoose from:
- Model 0207-070: 19" Length (Pail Use)
- Model 0207-071: 27" Length (Canister Use)
- Model 0207-072: 39" Length (55 Gallon Drum Use)
- Model 0207-073: 39" Length with flow meter TR90 PP (55 Gallon Drum Use)
Properties:
Performance: 260 Watt (internally ventilated)
Voltage: 21,6 V
Capacity: 4 Ah
Stock: ETFE/PTFE
Seals: without
Mechanical seal: without
Delivery wheel: ETFE
Conveyor wheel shape: Rotor
Temperature of the pumped medium: -15 to +90 °C
Immersion tube durometer: 28 mm
Dive depth: 500 mm
Weight: 4.4 kg
Flow rate max.: 45 l/min.
Delivery head max.: 8 m WS
Viscosity max.: 400 mPas
Density: 1.6 kg/dm³
- Medium to large filling quantities
- Extremely high performance at low weight
- Higher viscosity up to max. 400 mPas
- Higher pressure/flow rates
- Higher density up to max. 1.6 kg/dm³
- Longer battery life
- Automatic switch-off on overload
- Exchangeable, powerful battery with Li-Ion technology
- Step-less control for all requirements
- Good handling due to comfortable carrying handle, compact design and low weight
- Wear-free, low-noise
- BLDC motor
- Extremely high performance at low weight
- Easy disassembly due to quick release fastener
- BLDC motor with high efficiency of up to 70 Infinitely variable
- Modular design
- Low weight
- Long battery life
- Long service life
- Low volume ≤ 70 dBA
- Mature quick release fastener
- Available in polypropylene, polyvinylidene fluoride and stainless steel (1.4571)
- Motor B2 Battery, pumping unit Niro 28-R DL in stainless steel (1.4571), 1.5 m PVC hose 3/4", hose clamps, Lutz nozzle with suspension bracket (battery and charger not included).
Performance: 260 Watt (internally ventilated)
Voltage: 21,6 V
Capacity: 4 Ah
Stock: ETFE/PTFE
Seals: without
Mechanical seal: without
Delivery wheel: ETFE
Conveyor wheel shape: Rotor
Temperature of the pumped medium: -15 to +90 °C
Immersion tube durometer: 28 mm
Dive depth: 500 mm
Weight: 4.4 kg
Flow rate max.: 45 l/min.
Delivery head max.: 8 m WS
Viscosity max.: 400 mPas
Density: 1.6 kg/dm³
Lutz B1/B2 products are listed in 6 groupings for ease of ordering:
