Description
PulsaTron LPH6

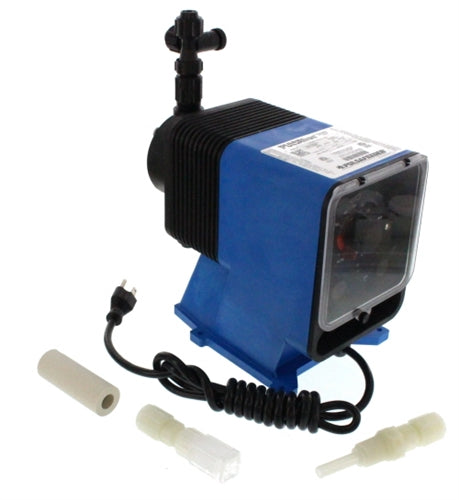

PulsaTron E Series Plus LPH6 Pumps.- Max. Flow rate: 5.00 gph / 120 gpd (18.9 lph)
- Max. Pressure 100 psi (7 BAR)
- Standard models listed are 115 VAC.
| Model Number | Controls | Head Fittings | Seals & O-Rings | Balls | Tubing Connections |
|---|---|---|---|---|---|
| LPH6EA-KTC3-XXX | Ext Remote* | PVDF | TFE | Ceramic | 1/2" O.D. |
| LPH6EA-PTC3-XXX | Ext Remote* | GFPPL | TFE | Ceramic | 1/2" O.D. |
| LPH6EA-PTT4-XXX | Ext Remote* | GFPPL | TFE | TFE | 1/4" FNPT |
| LPH6EA-VHC3-XXX | Ext Remote* | PVC | CSPE | Ceramic | 1/2" O.D. |
| LPH6EA-VTC3-XXX | Ext Remote* | PVC | TFE | Ceramic | 1/2" O.D. |
| LPH6MA-ATS4-XXX | 4-20mADC** | 316 SS | TFE | 316 SS | 1/4" FNPT |
| LPH6MA-KTC3-XXX | 4-20mADC** | PVDF | TFE | Ceramic | 1/2" O.D. |
| LPH6MA-KTC4-XXX | 4-20mADC** | PVDF | TFE | Ceramic | 1/4" FNPT |
| LPH6MA-PHC3-XXX | 4-20mADC** | GFPPL | CSPE | Ceramic | 1/2" O.D. |
| LPH6MA-PTC3-XXX | 4-20mADC** | GFPPL | TFE | Ceramic | 1/2" O.D. |
| LPH6MA-PTC4-XXX | 4-20mADC** | GFPPL | TFE | Ceramic | 1/4" FNPT |
| LPH6MA-PTT3-XXX | 4-20mADC** | GFPPL | TFE | TFE | 1/2" O.D. |
| LPH6MA-VHC3-XXX | 4-20mADC** | PVC | CSPE | Ceramic | 1/2" O.D. |
| LPH6MA-VTC3-XXX | 4-20mADC** | PVC | TFE | Ceramic | 1/2" O.D. |
| LPH6MA-VTT3-XXX | 4-20mADC** | PVC | TFE | TFE | 1/2" O.D. |
| LPH6MA-VVC3-XXX | 4-20mADC** | PVC | Viton | Ceramic | 1/2" O.D. |
| LPH6SA-KTC3-XXX | Manual on/off | PVDF | TFE | Ceramic | 1/2" O.D. |
| LPH6SA-KTT3-XXX | Manual on/off | PVDF | TFE | TFE | 1/2" O.D. |
| LPH6SA-PHC3-XXX | Manual on/off | GFPPL | CPSE | Ceramic | 1/2" O.D. |
| LPH6SA-PTC3-XXX | Manual on/off | GFPPL | TFE | Ceramic | 1/2" O.D. |
| LPH6SA-PTC4-XXX | Manual on/off | GFPPL | TFE | Ceramic | 1/4" FNPT |
| LPH6SA-PTC7-XXX | Manual on/off | GFPPL | TFE | Ceramic | 1/2" FNPT" |
| LPH6SA-PTT3-XXX | Manual on/off | GFPPL | TFE | TFE | 1/2" O.D. |
| LPH6SA-VTC3-XXX | Manual on/off | PVC | TFE | Ceramic | 1/2" O.D. |
| LPH6SA-VTT3-XXX | Manual on/off | PVC | TFE | TFE | 1/2" O.D. |
| LPH6SA-VVC3-XXX | Manual on/off | PVC | Viton | Ceramic | 1/2" O.D. |
* Ext/Remote pacing with stop.
** 4 to 20 mADC Direct, with stop.
