Description

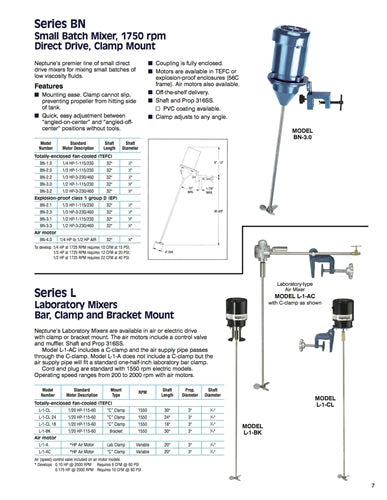

Neptune L-1 Mixers
Laboratory Mixers from Neptune Pump. For more description, please visit Neptune Pump website.|
Model Number
|
Mount Type
|
Motor Description
|
RPM |
Shaft Diameter
|
Shaft Length
|
Propeller Diameter
|
Approx. Weight
|
|---|---|---|---|---|---|---|---|
| L-1-CL |

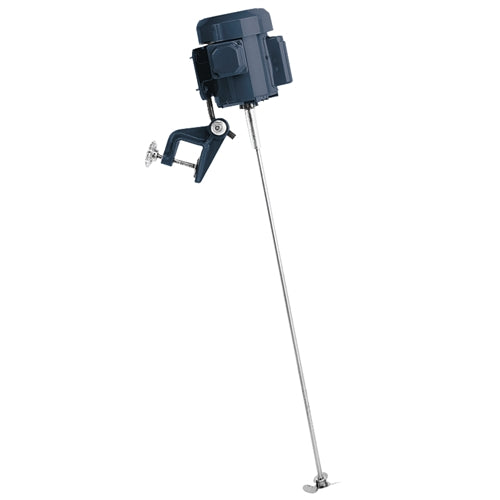

"C" Clamp
|
1/20HP-15-60-TEFC
|
1550
|
5/16" | 30" | 3" | 14 lbs |
|
L-1-CL-24
|
"C" Clamp | 1/20HP-15-60-TEFC | 1550 | 5/16" | 24" | 3" | 14 lbs |
| L-1-CL-18 | "C" Clamp | 1/20HP-15-60-TEFC | 1550 | 5/16" | 18" |
3"
|
14 lbs |
| L-1-BK |

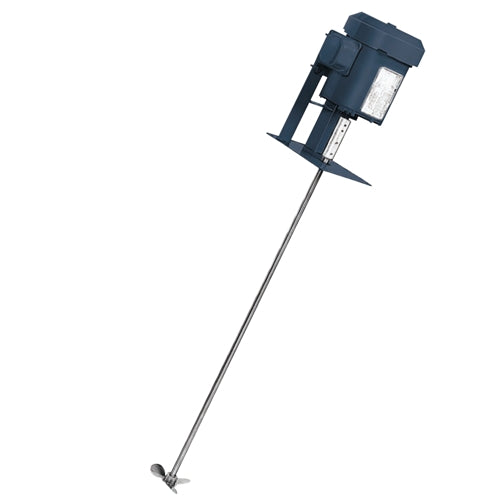

Bracket
|
1/20HP-15-60-TEFC | 1550 | 5/16" |
30"
|
3" |
8 lbs
|
| L-1-A |
Lab Clamp
|
HP Air Motor
|
Variable*
|
5/16"
|
20" | 3" |
5 lbs
|
| L-1-AC | "C" Clamp | HP Air Motor | Variable* | 5/16" | 20" | 3" |
5 lbs
|
Mixer Notes:
- Cord and plug included on electric motor models
- Air (speed) control valve included on air motor models
0.10HP @ 2000 RPM Requires 6 CFM @ 60 PSI
0.175HP @ 2000 RPM Requires 10 CFM @ 60 PSI
