Description
Glycol Feeders
50 Gallon Glycol Feeders. This model design comes with three types to choose from:- Part Number GL-50 (default) - 50 Gallon Glycol Feeder with a low-level warning light.
- Part Number GL-50-AA - 50 Gallon Glycol Feeder with a low-level warning light and Audible Alarm.
- Part Number GL-50-AA-RC - 50 Gallon Glycol Feeder with low-level warning light, Audible Alarm and Remote Contact.
- Part Number GL-50-E-OR - 50 Gallon Outdoor Glycol Feeder

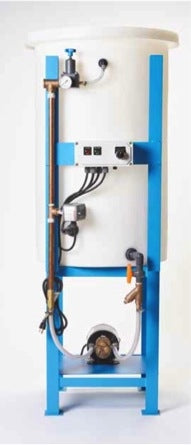

The glycol feeder tank is a 55-gallon polyethylene tank with a PE cover. The tank is fully supported and restrained by a carbon steel bottom mount stand. Stand painted with a water-based enamel.
Gear Pump Motor Size Option:

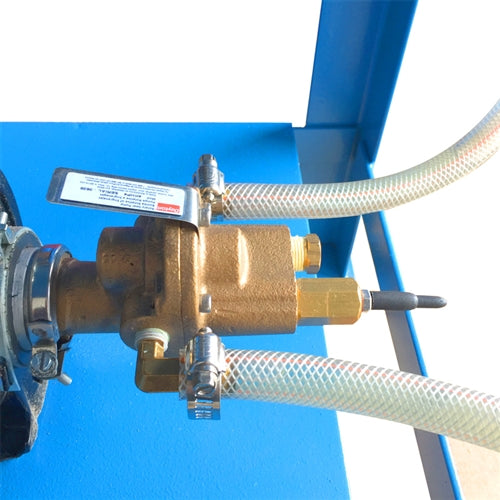

Your glycol feeder may be ordered with a 1/3 HP, 1/2 HP, or 3/4 HP and 1/2 HP motor. These gears pumps provide steady and even flow against pressure with an internal pressure relief bypass valve.
Control Panel

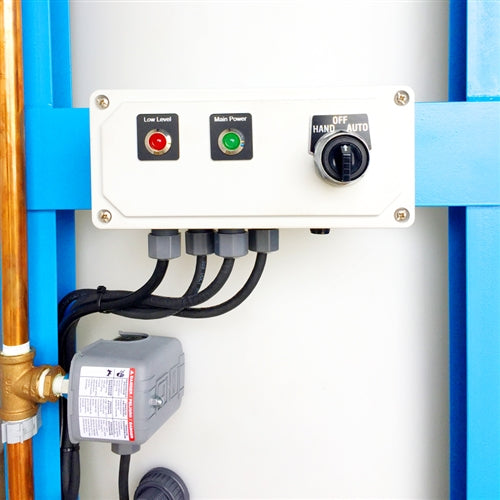

The Standard Glycol Feeder includes a NEMA 4X control panel that comes standard with an 115V power cord. The control panel includes 3 positions (hand-off-auto), switch and light for main power, low level light and 15 AMP fuse.
Other Features:
- Low Level Switch - Polypropylene side entering low level switch with 10 AMP relay.

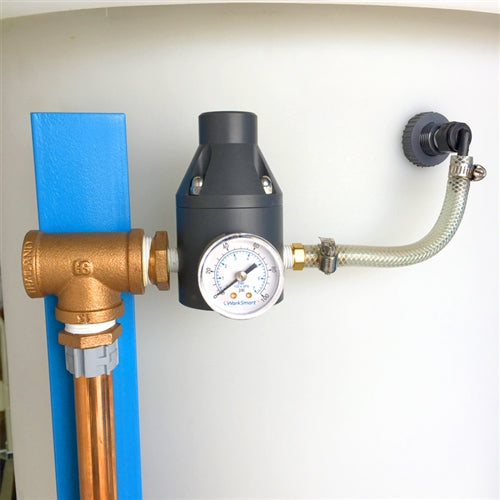

- Pressure Switch - Comes with a 1/4†NPT pressure switch.
- Pressure relief valve - Rated at 5 to 150 PSI.
- System Connection - 3/4†Brass FNPT.
- Pump is rated at 1.3 GPM at 100 psi.
- PVC drain valve.
- Flexible tubing.
- Y-strainer.
- PVC ball valve.
- Brass check valve.
- Brass piping.
- 1/4†NPT pressure gauge.
Outdoor Glycol Feeder
The final option is for Outdoor Applications. This option includes a Standard Glycol Feeders with a TEFC Motor, Nema 3 Pressure Switch, and a Nema Rated Remote Contact (where required).- What are the dimensions of the GL-50-E Glycol Feeder?
- The dimensions are: 62†High x 26†Wide x 31†Deep
- What is the ship weight of a Chemworld Glycol Feeder?
- The shipping Shipping Weight is approx. 225 lbs.
