Description

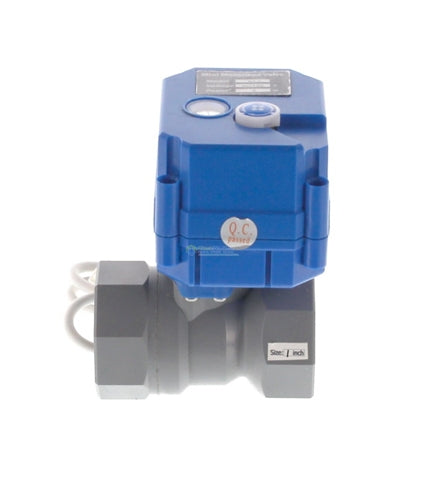

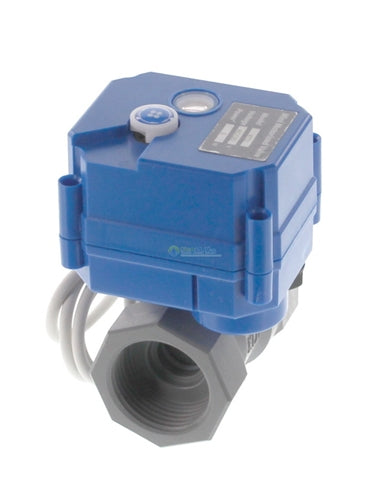

CPVC Motorized Ball Valve
1/2" to 1" CPVC Motorized Ball Valve. Power on open. Power off closed. CPVC Motorized Ball Valve specifications:- 120 and 240 Volt
- 2-way
- Housing Material ABS Body/Ball/Stem CPVC
- 1/2", 3/4", and 1" NPT (Female)
- Seal EPDM
- Rating IP67
- Seat PTFE
- Max Power 5 W
- Max Torque 2 Nm
- 2 wires normally closed function
- Visual indicator and manual override
- 100000 times service life.
- Maximum Pressure: 145 psi
- Max Delta P is 100 psi
- Ambient Temp -4F to 113F (-20C to 45C)
- Maximum Temperature 140F (60 C)
- Current 25 +/- 5 mA
- To fully close Running Time 5 to 7 seconds
- Open amp; close time: 3 to 5 seconds. Anti water hammer slow close function. Without costly and bulky spring return actuator, the valve will normally close by the way of built in capacitor when power off
- Max Temperature: 100 C (212 F)
- Very low working current, can be suitable for battery operating.
- Small amp; compact design, very suitable for small equipment.
- To guarantee the best working performance, charge the valve for 60 seconds when you first use the valve.
- High fouling heating & cooling water systems
- Different water control system
- Water recycling
- Water purification
- Water treatment.
- Center heating & cooling water system
- HVAC
- Automated leak detection
- Water shut off system electric brewing system
- Solar heating systems
- Campus IC card systems
- Water saving systems
- Automatic irrigation
- Water purification & filtration systems
- Sprinkle systems
