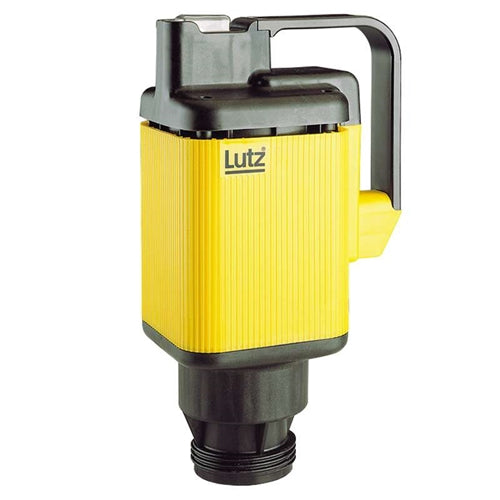

Lutz B55T-5 Pump Head
The model number of this pump is B55T-5. The stock number for this product is 0060-004. You may purchase an optional Lutz tube.Suitable for pumping aqueous up to slightly viscous, aggressive and outgassing liquids as well as liquids with high specific weight.
The Lutz B55T-5 pump head options are:
- 110 Volt (most popular)
- 220 Volt
- Robust and powerful
- Double wall housing
- Externally ventilated
- 100-120V / 60Hz
- 220-230V / 60hz
- 510 W
- Protection class IP 54
- Double-pole ON/OFF switch
- Splash water protected with IP 54,
- Single-pole thermal overcurrent release.
- 5 m connection cable with shock-proof plug.
- Not explosion-proof.
The convenient and powerful B55T-5 motors are ideal for pumping thin-bodied to slightly viscous, aggressive and non-flammable fluids.
Safety:
The inner part of the double wall housing is made of aluminum, the outer part is made of special acid-proof plastic. Due to this, any aggressive or corrosive vapours cannot reach the inner part of the motor.
The airflow for cooling the motor is conducted between the two walls of the housing.
This product is just the replacement pump head. Please refer to our complete set options.Can you tell me which pump tube is best for 15W40 lube oil at ambient temp of 68 degrees Fahrenheit? I have the Lutz B55T-5 Universal Pump Head already. If the oil is not going to be warmed and there is a chance that it will be pumped at ambient temperature we would recommend the Progressive cavity pump B70V-SR w/ Viton stator. B70V-SR 25:1 Viton w/Mech. Seal Part #0174-142.
