Stenner 45MP

Stenner Series 45MP Pumps - Easy to order page. This page covers Stenner Models 45MPHP2, 45MPHP10, 45MPHP22, 45MP1, 45MP2, 45MP3, 45MP4, and 45MP5.

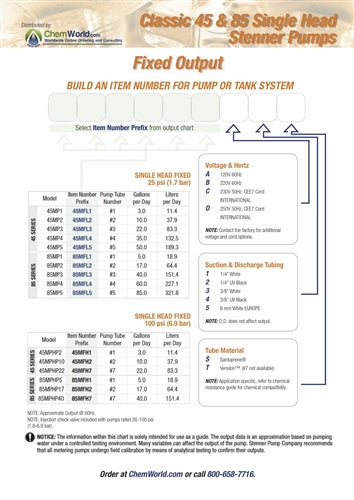

Understanding the Stenner Pump model number.
The Stenner Pump part number may be difficult. When ordering based on the model number you must cross reference to the part number. "45MP" is the base number. The "F" means the product pump is a fixed rate pump. The following digit is "H" or "L". This stands for high and low pressure. The last number is in the part number below is the tube size (1,2,3,4,5,7) which determines the output (GDP) of the Stenner Pump.

Model Number	Part Number	Pressure Rating	GPD
45MPHP2	45MFH1	100 psi	3.0 gpd
45MPHP10	45MFH2	100 psi	10.0 gpd
45MPHP22	45MFH7	100 psi	22.0 gpd
45MP1	45MFL1	25 psi	3.0 gpd
45MP2	45MFL2	25 psi	10.0 gpd
45MP3	45MFL3	25 psi	22.0 gpd
45MP4	45MFL4	25 psi	35.0 gpd
45MP5	45MFL5	25 psi	50.0 gpd

Now that you understand the Stenner model number versus part number, choose the following next options:

1. The voltage and hertz. (110/120 or 220/240 Volt)
2. The material suction and discharge tubing size and material. (1/4" or 3/4")

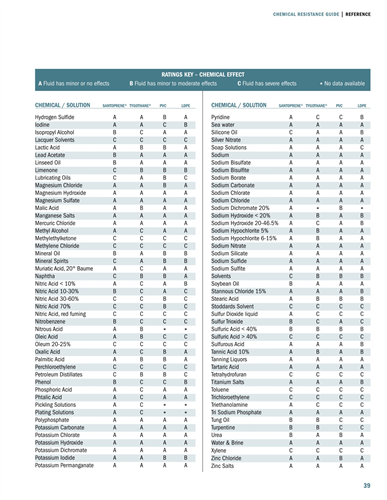

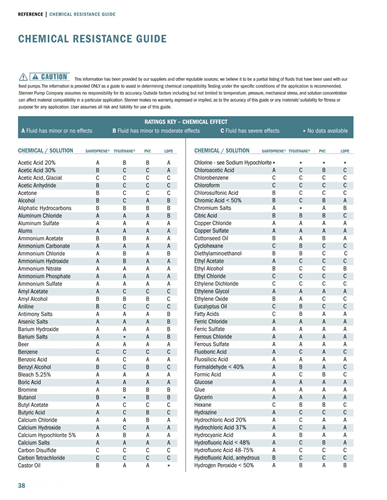

3. The tube material. When electing the tube type use the material compatibility chart. (S or T)

Ordering example:

The default part number is 45MFL1A1S. When you choose the options it will change to the exact part number you need.

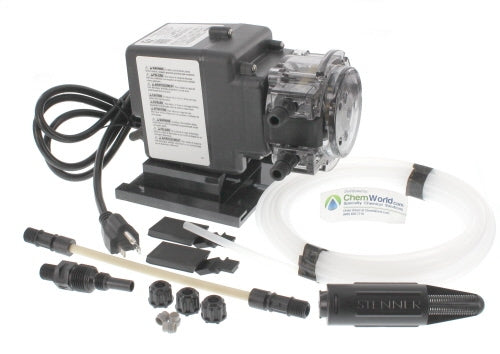

Pump option includes:

• QTY 3 - 1/4" connecting nuts & ferrules (1/4" tubes) or three 3/8" to 1/4 adaptors.
• QTY 1 - Chemical injection check valve 100 psi (6.9 bar) or 1 injection fitting 25 psi (1.7 bar).
• QTY 1 - 1/4" or 3/8" Weighted suction line strainer.
• QTY 1 - 20' white or UV black roll suction/discharge tubing (1/4" or 3/8").
• QTY 1 - Additional pump tube.
• QTY 2 - Additional latches.
• QTY 1 - Mounting bracket.
