55 Gallon Drum Pump

Lutz Pump number: B36SC/MSL-PP 41 HC 39" Set.

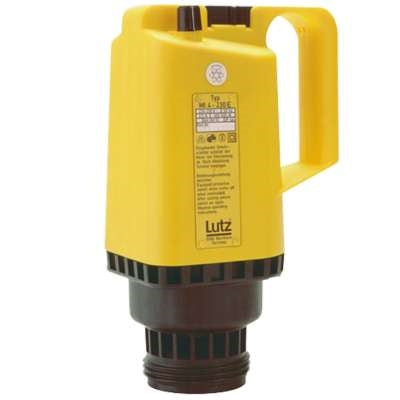

Comes with motor B 36SC / MI 4-E (120 V) with speed controller, immersion depth: 39" / 1000 mm (seal less). suitable for emptying 15 to 55 gallon drums conditionally safe to run dry.

Suitable for corrosive and neutral, aqueous to slightly viscous liquids in non-explosive areas.

Liquid examples:

• For thin-bodied acids such as hydrochloric acid, battery acid, ferric (III) chloride, phosphoric acid, chromic acid, citric acid, propylene glycol, boiler chemicals, cooling water chemicals, biocides, Nexfrost, Nexfrost HD, deionized water, distilled water, etc.

Features:

• No grease fillings.
• Optimized drum drainage.
• Modular, service friendly design.
• Radial-flow impeller (L) for higher delivery head.

Benefits:

• Lube-free pump tube, thus no contamination of the liquid.
• All-purpose resistant PTFE shaft bearing.
• Two impeller geometries for a tailored pump characteristic.
• Easy maintenance without special tools.
• Sealing modules of mechanical sealed (MMS)

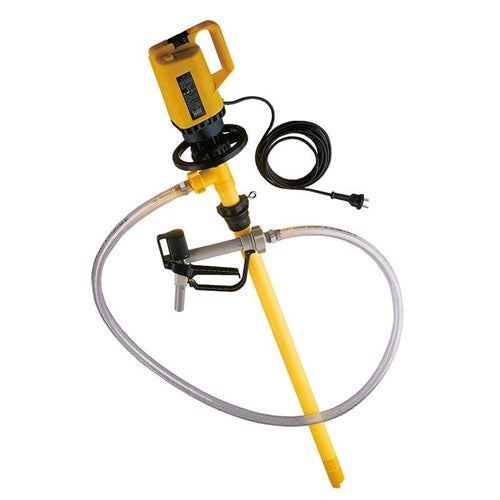

Pump set consisting of:

• Motor.

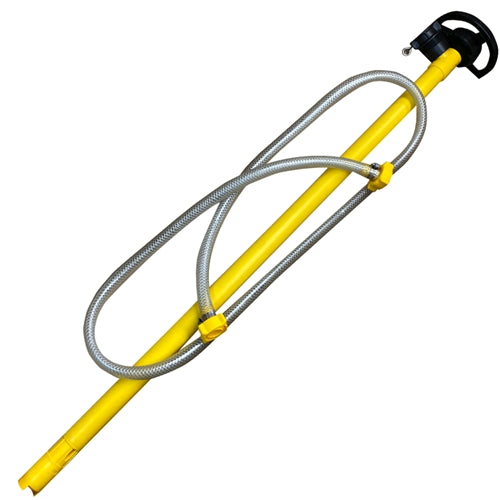

• Pump tube polypropylene shaft.
• 2 m PVC spiral hose 3/4" and hose connections.

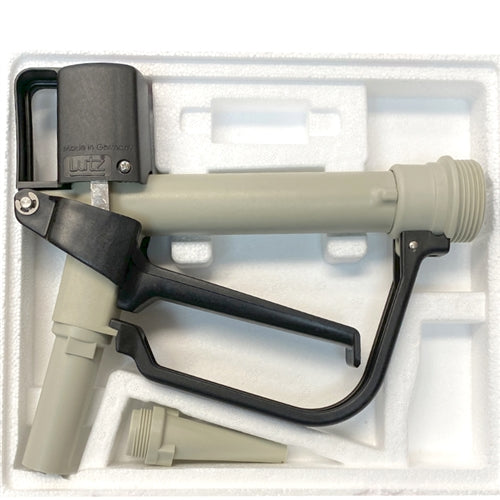

• Nozzle PP.
• Hose clips.
• Drum adapter PP.

Immersion Length: 39" (1000 mm) (55 gallon drum)
Flow Rate Max.: 13.2 GPM (50 l/min)
Pumping Head Max: 31 ft. (9.5 m wc)
Viscosity Max: 600 cps (600 mPas)
