55 Gallon Drum Pump

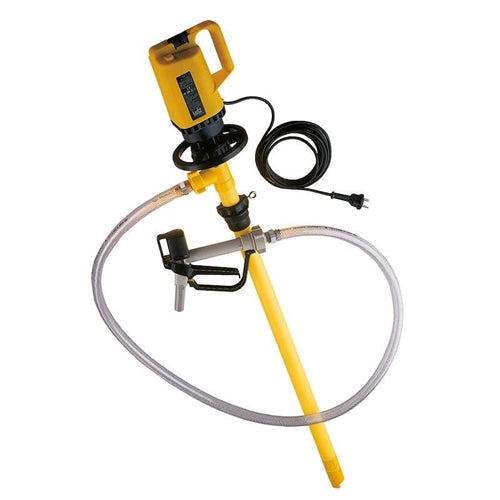

The Lutz full model number for this electric pump set is B36 MSL-PP 41 HC 39". It may be used with most Acids and Base or water solutions.

Comes with motor B 36 (120 V) motor, immersion depth: 39" / 1000 mm (seal less). suitable for emptying 15 to 55 gallon drums conditionally safe to run dry.

Suitable for corrosive and neutral, aqueous to slightly viscous liquids in non-explosive areas.

Liquid examples:

• For thin-bodied acids such as hydrochloric acid, battery acid, ferric (III) chloride, phosphoric acid, chromic acid, citric acid, Propylene Glycol, Dowfrost, Dowfrost HD, Distilled Water, Deionized Water, etc.

Features:

• No grease fillings.
• Optimized drum drainage.
• Modular, service friendly design.
• Radial-flow impeller (L) for higher delivery head.

Benefits:

• Lube-free pump tube, thus no contamination of the liquid.
• All-purpose resistant PTFE shaft bearing.
• Two impeller geometries for a tailored pump characteristic.
• Easy maintenance without special tools.
• Sealless

Immersion Length: 39" (55 gallon drum)

Flow Rate Max.: 13.2 GPM (50 l/min)
Pumping Head Max: 31 ft. (9.5 m wc)
Viscosity Max: 600 cps (600 mPas)

Includes:

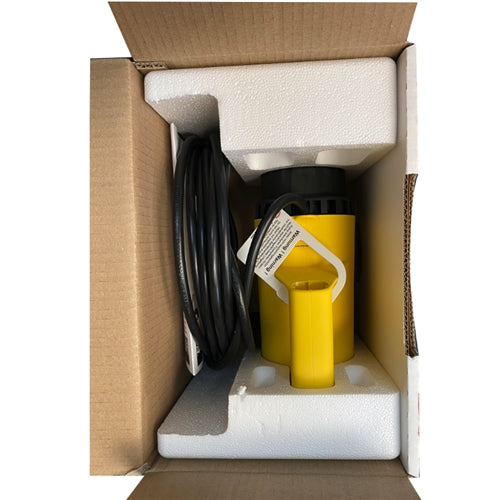

• Motor B36 with 16 ft cord

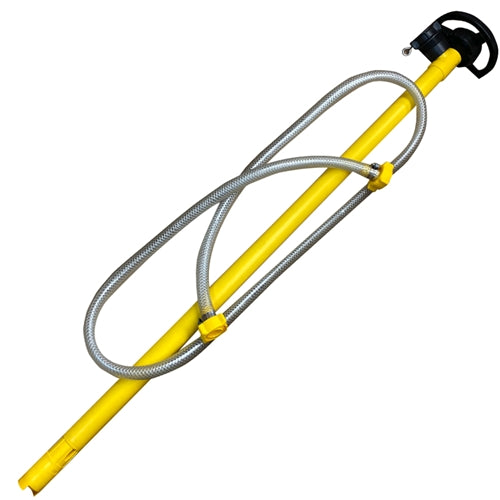

• 39“ sealless polypropylene pump tube
• High head impeller

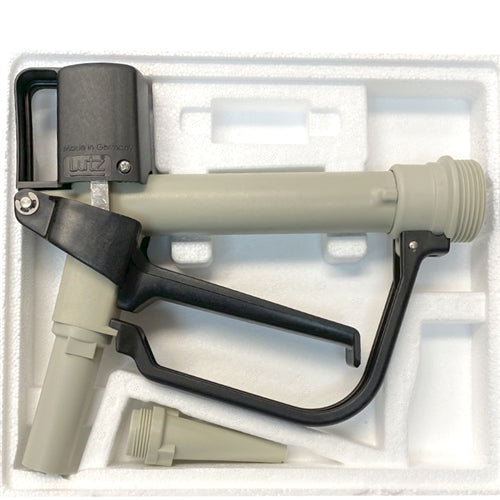

• 3/4“ polypropylene nozzle
• 8’ PVC Hose
• Hose Clamps

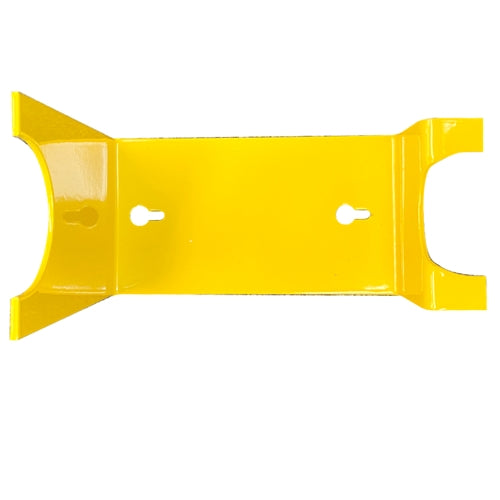

• Wall Hanger

Ratings:
Power: 120 V, 0.85 HP, ODP
Maximum Viscosity: 760 CPS What is the max temperature rating for the Lutz 0205-111-1 pump set? The B36/MSL-PP 41 HC 39" Set is rated for 122F max.
