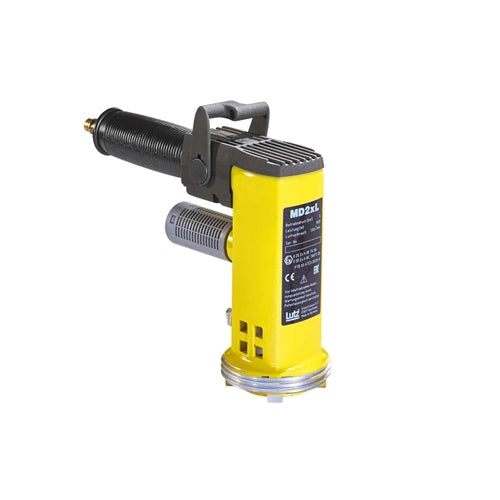

Lutz Air Motor Pump Head

The model number of this motor is MD2xL. The stock # is 0004-736. The MD2xL offers infinitely variable speed with a convenient grip as standard equipment You may purchase an optional Lutz Tube.

This motor has very good start-up behavior also with low pressure. This saves energy and costs.

Features/Benefits:

• High power and high efficiency due to optimization of the flow control
• Infinitely varied
• Modular construction
• Oil free version available
• Easy handling
• Long lifetime
• Atex-certification
• Good start behavior
• Motor can be retrofitted with a convenient grip at any time

For almost any requirement:

• High performance class up to 1000 watts
• High viscosity up to 100,000 mPas
• Applicable oil-free

Technical Specifications:

• Version: MD1xL
• Performance: max. 1000 W
• Air Pressure: max. 6 bar
• Viscosity: 100,000 mPas
• Oil-free: yes
• Power: 1000 watt/1.36 HP
• Operating Pressure: 87 PSI
• Air consumption: 53 CFM

During the development of the motors, the Lutz engineers succeeded in a significant increase of performance which enable the transferring of viscous liquid up to 100,000 mPas and thus the motors are almost universally applicable.

The motors can also be used to pump easy flammable liquids and comply with the Atex guidelines. The motor is infinitely varied and this allows a smooth and controlled filling. This product is just the replacement pump head.

Please refer to our complete set options.
