Boiler Rust Inhibitor

What is a ChemWorld 2338D?

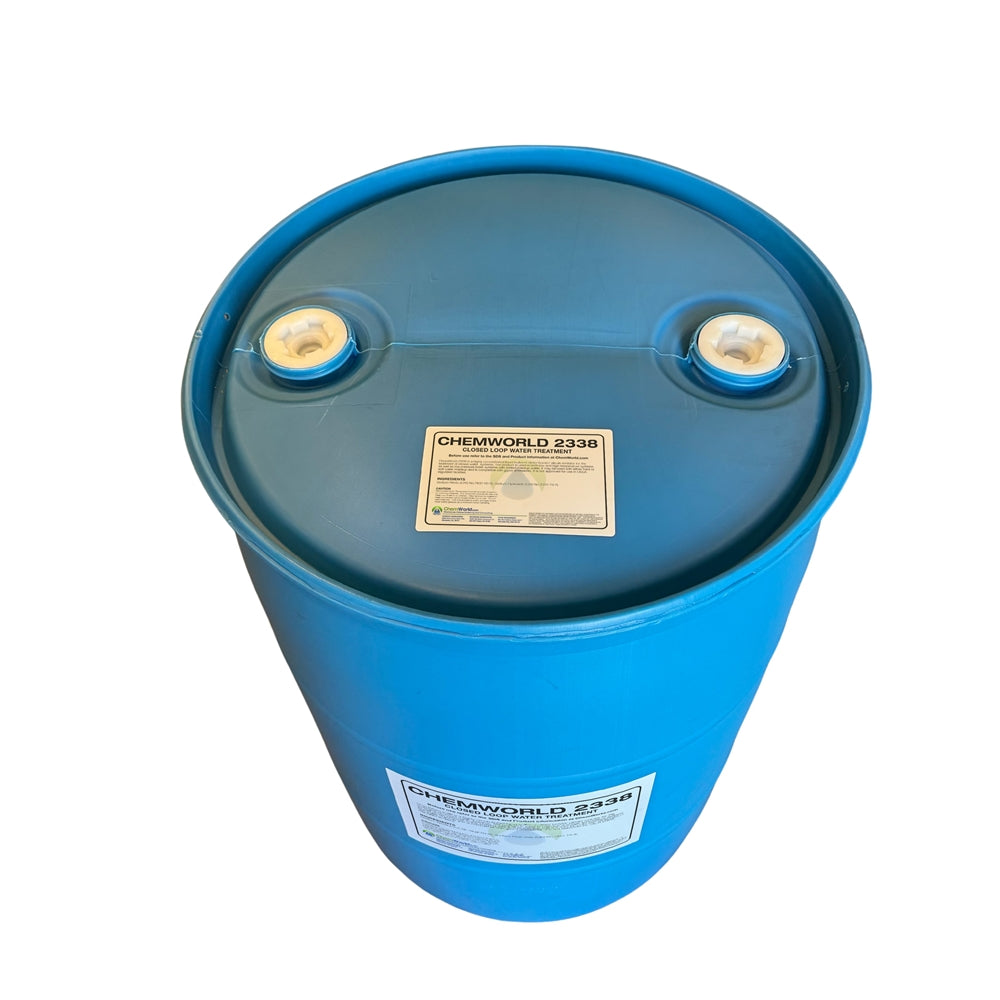

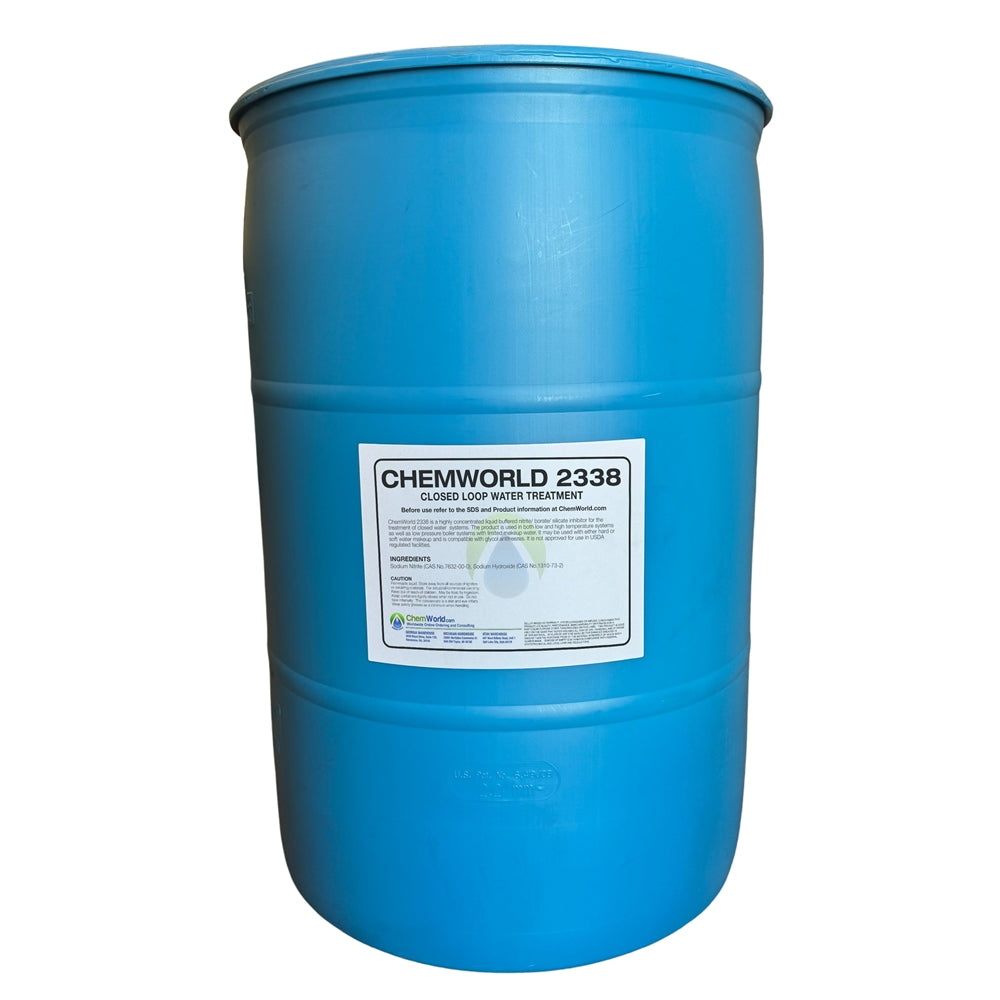

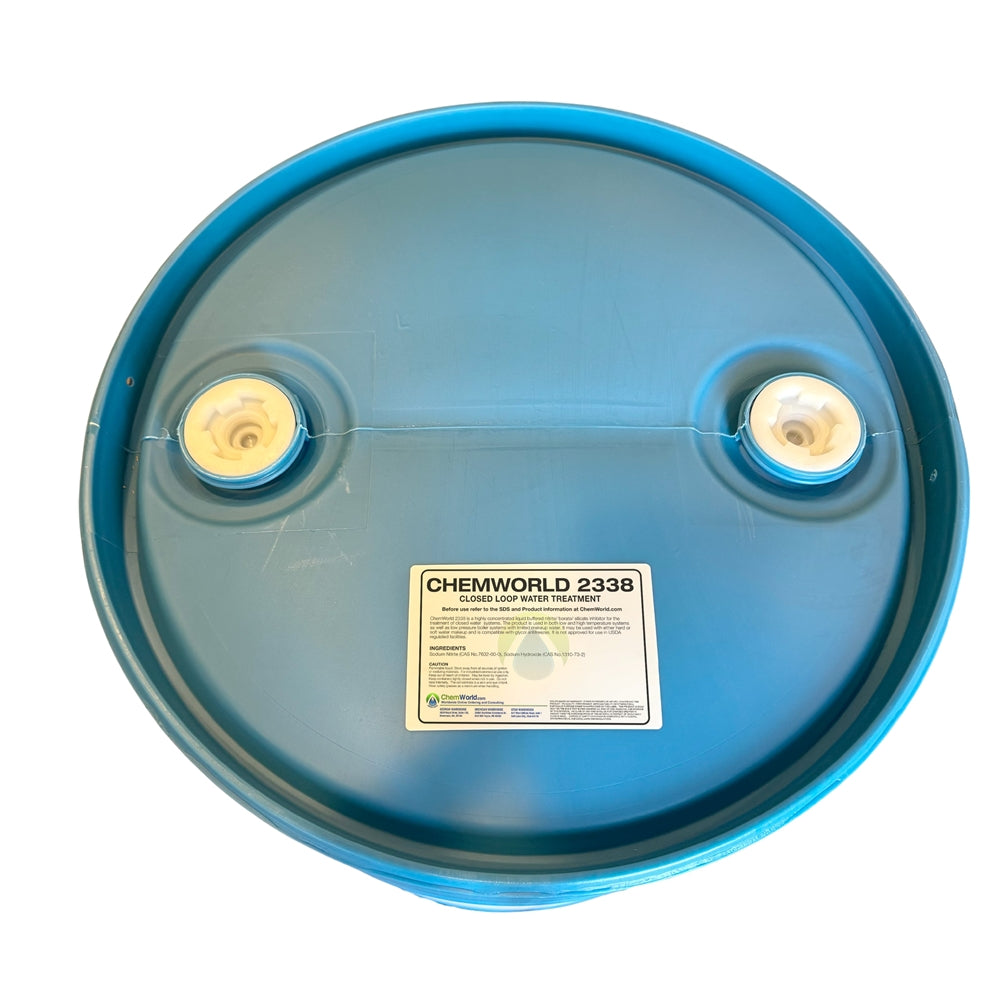

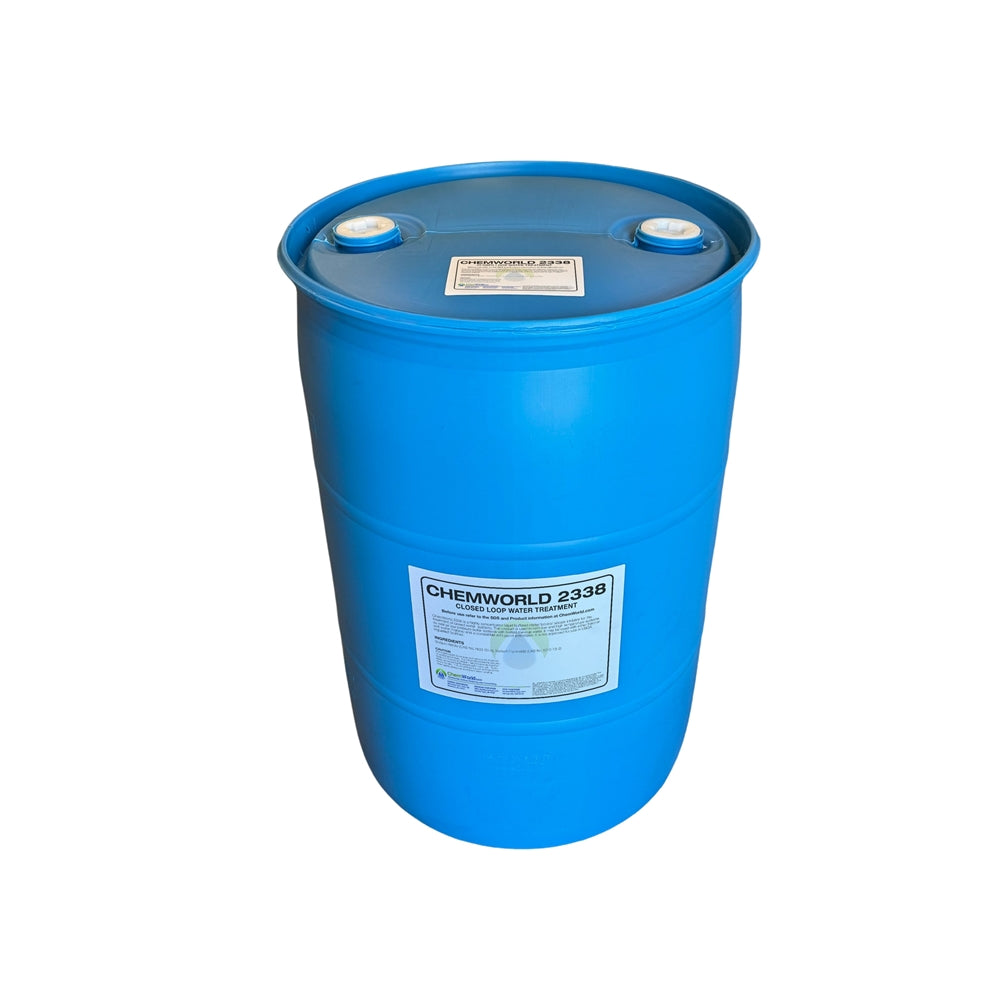

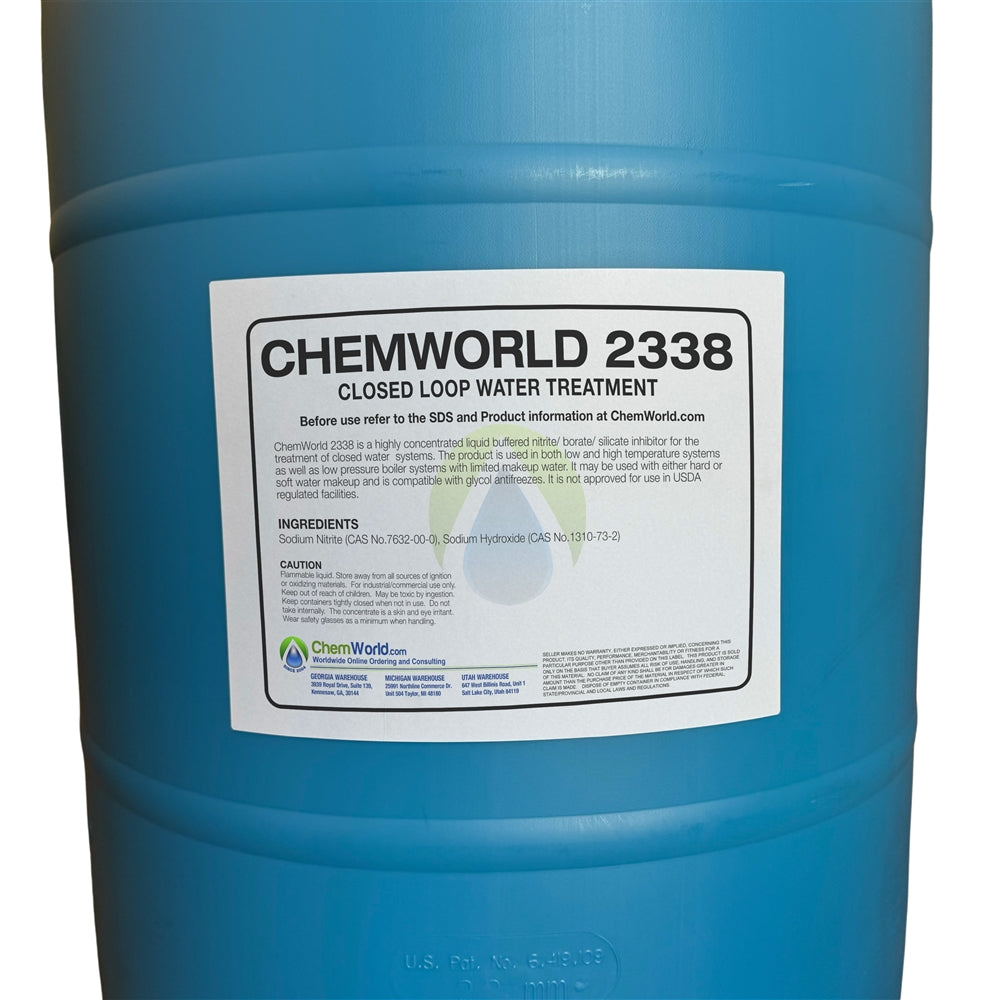

ChemWorld 2338D is designed to minimize corrosion to hot water boiler and chiller systems. ChemWorld 2338D is pink in appearance. ChemWorld 2338 & 2338D are closed water system treatment programs designed to treat hot and chilled water systems. The product contains a combination of nitrite, borate, and silicate formulated to minimize corrosion and deposition. The product comes in a clear and pink appearance form. This product is not intended for use in steam boilers. This product is compatible with propylene glycol.

How much chemical do I have to add to my system?
55 Gallons treats roughly 10,000 gallons of fresh water. Below is an easy to use the chart for determining the amount of Boiler Rust Inhibitor required for new systems.

Residuals of this product can be monitored with a nitrite test kit or nitrite test strips.

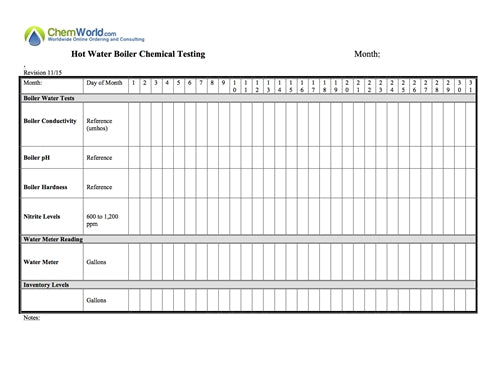

For critical hot water applications, we recommend monitoring the boiler water pH and conductivity as a reference in case future problems occur.

Product Removal
For easy product removal, consider adding a 55-gallon drum dolly to disperse your inhibitor from 2" bung faucets into 5-gallon pails or hand pump the product from the 55 gallon drum.

Chemworld 2338D do I need to apply it just once? Or repeatedly over time? For example, every 6 months?

You add it once and let it recirculate. Then you monitor the Nitrite levels of the chemical to make sure the system is protected. Nitrite levels should be between 600-2000ppm. If the levels are in range then you don't need to add additional chemical. Yes if it's too low you add more chemical. If it's too high you add fresh water.

We buy and use the above mentioned Product and try to maintain a Nitrite level of about 1300ppm on our Commercial Steam Boilers but some of our boiler controllers seem to get corroded and leak after about 6 months to a year. My questions are: Are we using the correct chemical? Are we maintaining the correct reading? And if we’re what are your recommendations to stop our present issues so we don’t have to replace these components so often?

A steam boiler with low makeup up water can be treated like a hot water boiler and 2338 will work fine. If your steam boiler doesn’t return a lot of condensate back to the boiler and you are adding more water, you need to be using a sulfite based product that removes the dissolved oxygen from the freshwater.If that’s the case Chemworld 1287 would be a better fit. With 1287 you just need any sulfite residual when testing the boiler water.

Can we add ChemWorld 2338 through a By-Pass feeder?

Yes that is no problem. Our Chemworld 2338 can be fed through By-Pass Feeders.

What is the ship weight of the 55 Gallon drum?

The 55 Gallon drum of Chemworld 2338 weighs approx. 600 lbs.
